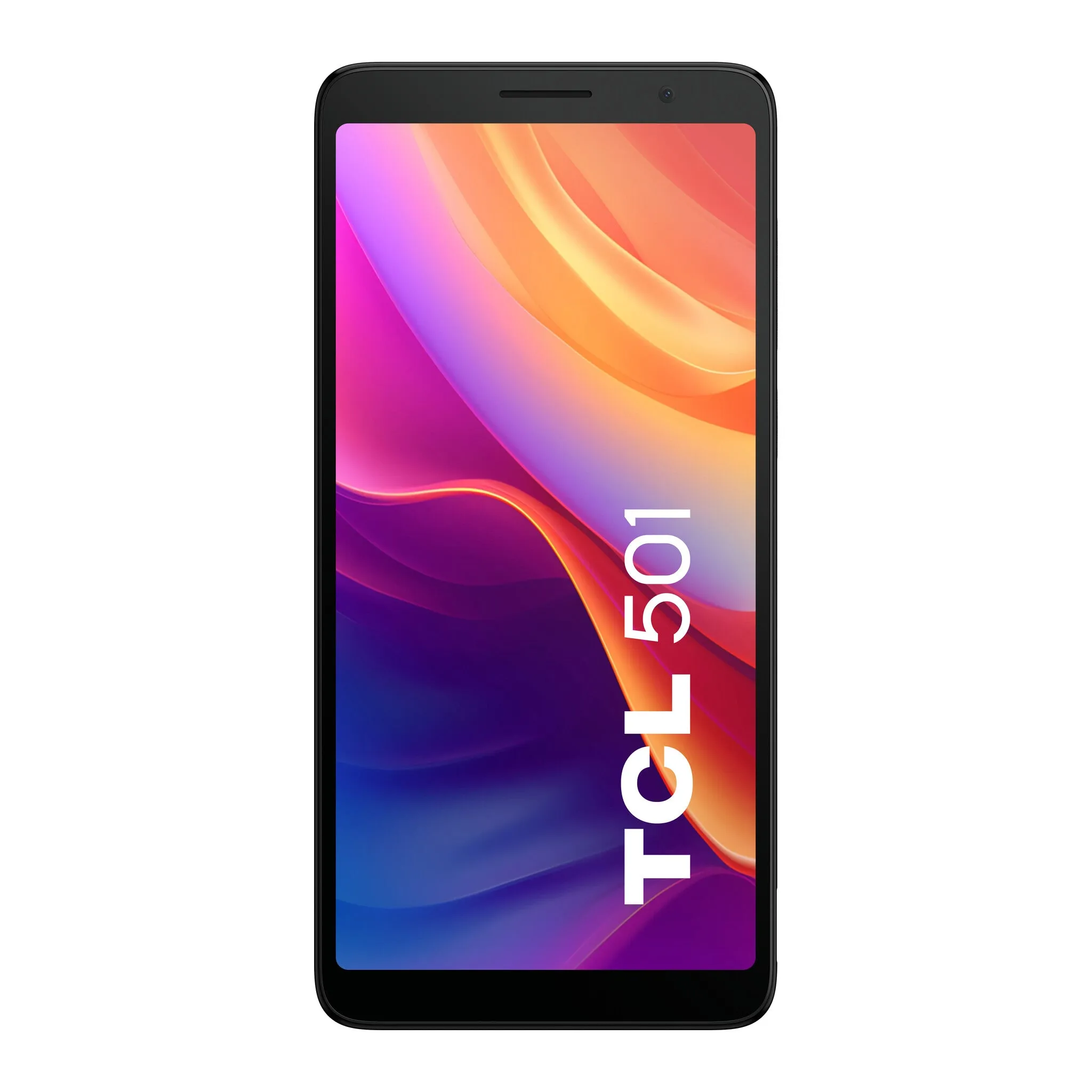

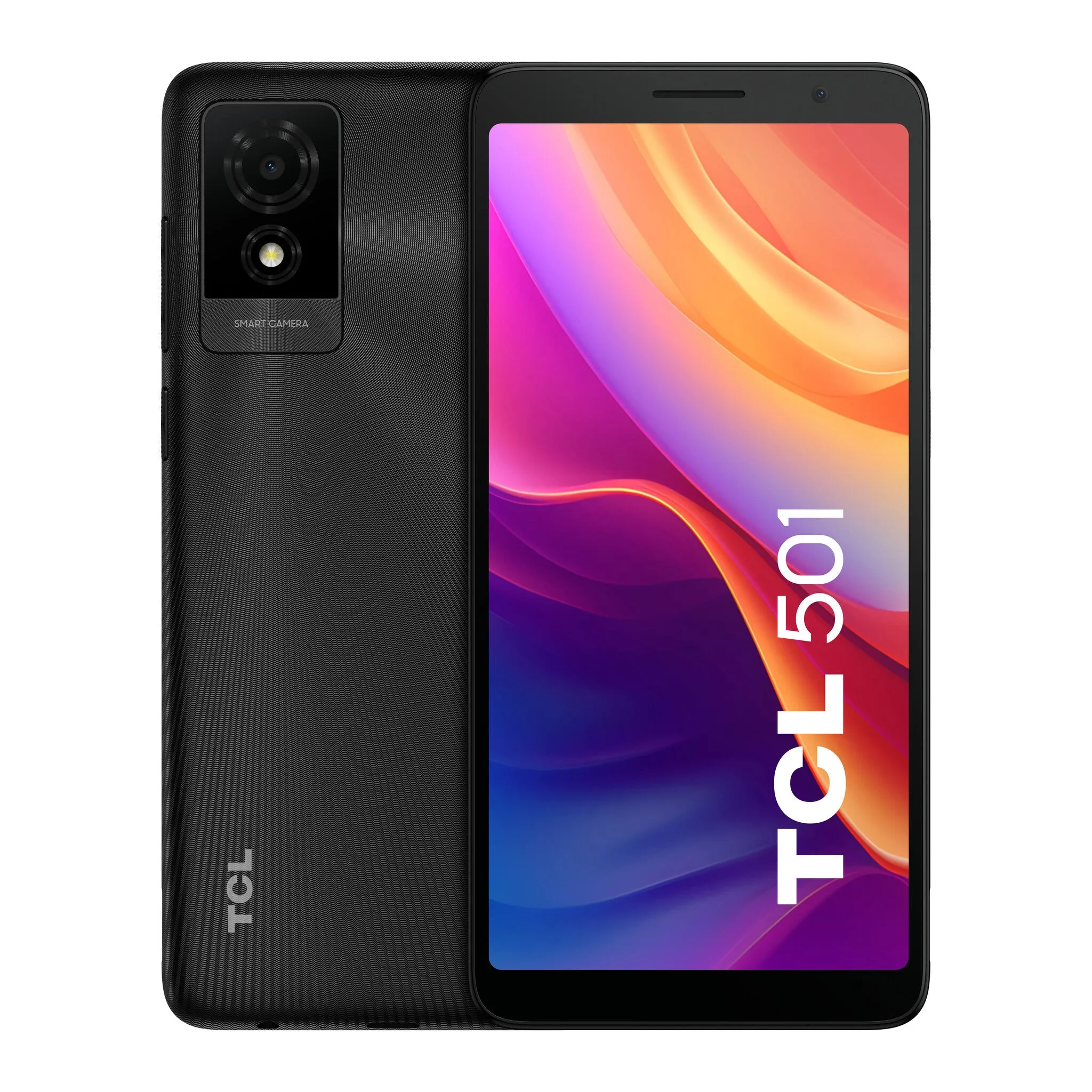

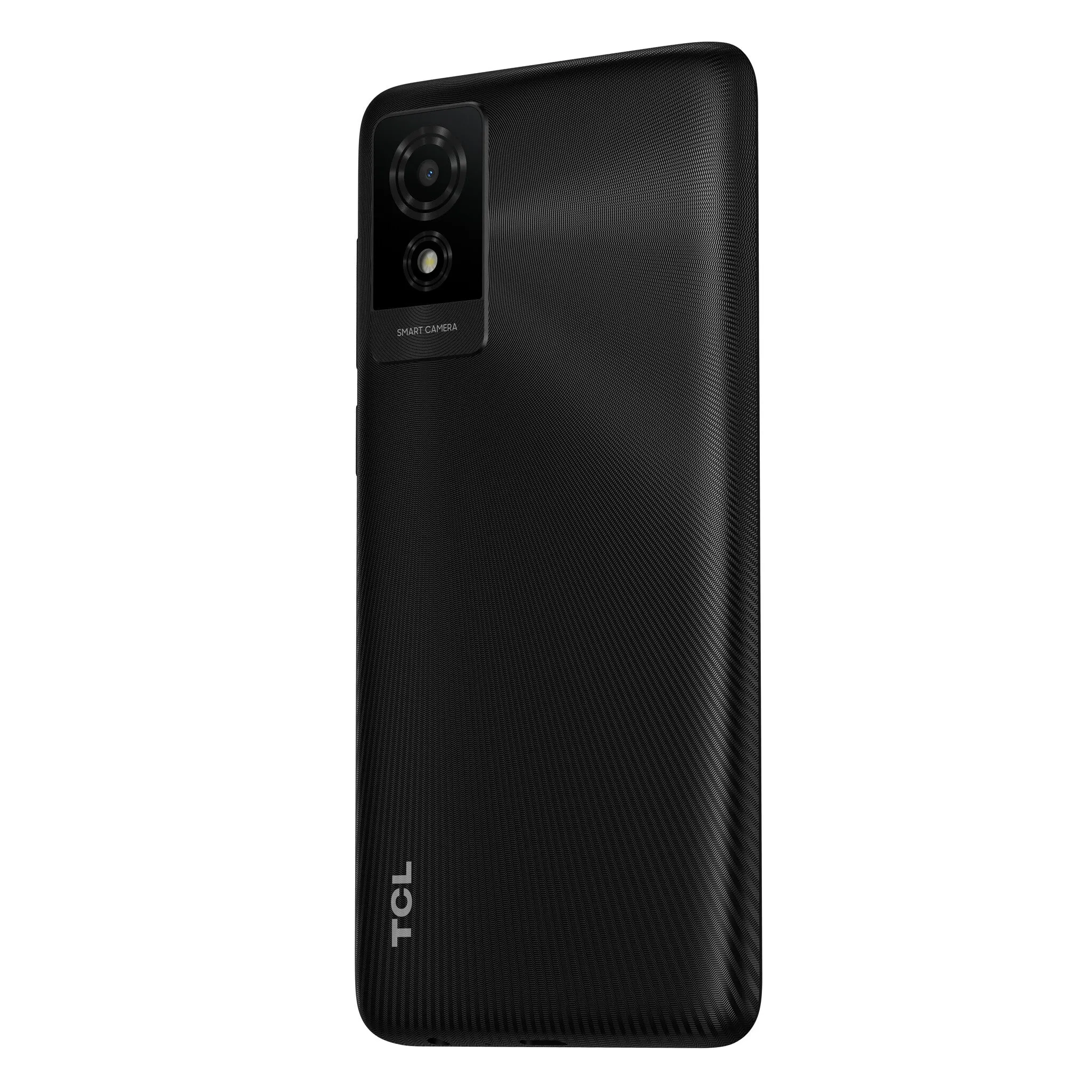

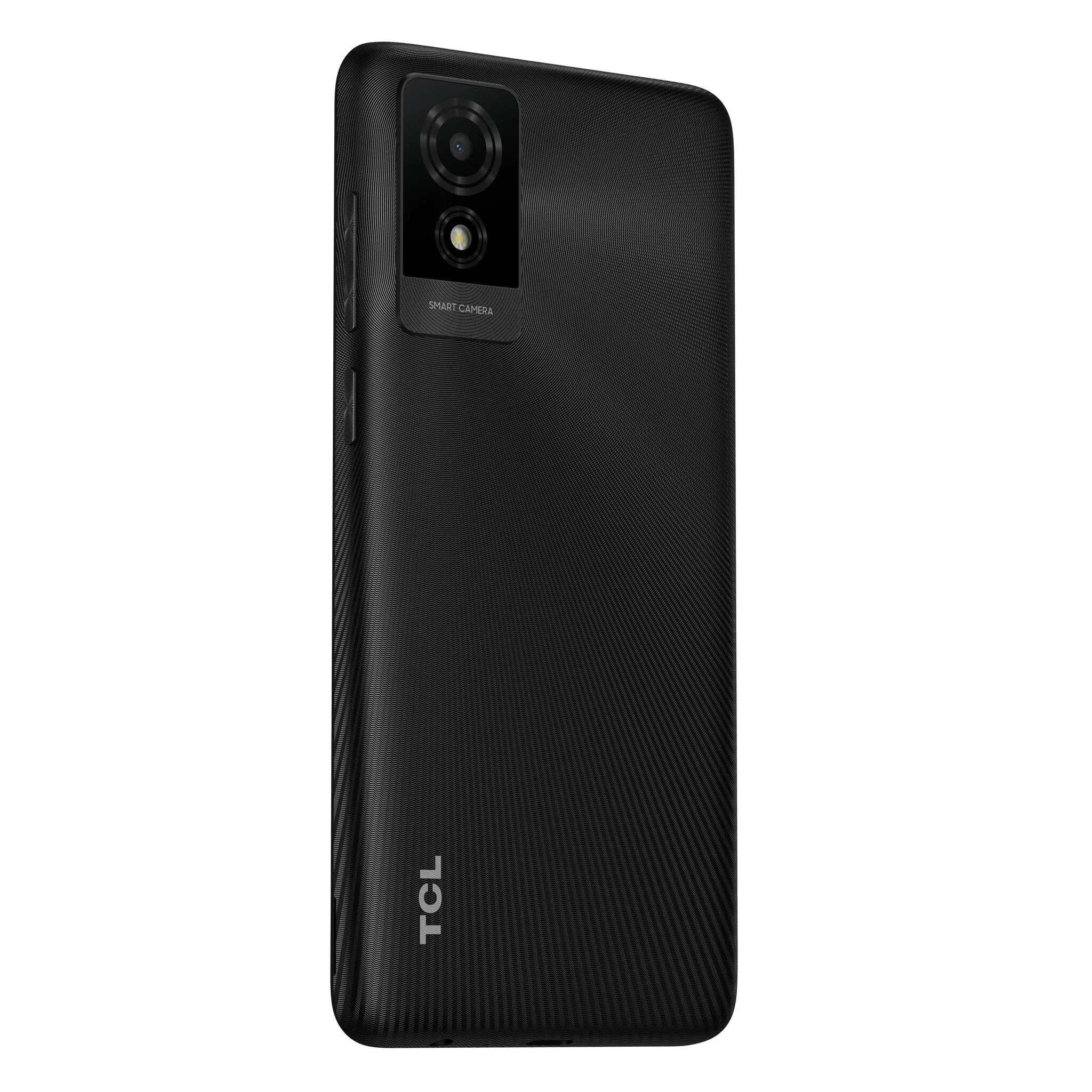

6.0", qHD, 540 x 1092, MTK G36, 2 GB RAM, 32 GB ROM, 5 MP / 2 MP, 3000 mAh, 2x Nano SIM micro SD, 74.88 x 9.65 x 156.48 mm, Prime Black

---

The TCL 501 seamlessly integrates essential features without any compromise. Enjoy an expansive 6" display for your favourite media consumption, a 5MP camera to capture special moments for sharing with friends and family, and a resilient 3000mAh battery providing up to 10 hours of continuous use. Effortlessly unlock the TCL 501 with Face Unlock and experience the power-efficient octa-core processor seamlessly multitasking as you switch between your favourite apps.

---

Display
Touchscreen type	Capacitive
Display brightness	400 cd/m²
Native aspect ratio	18:9
Contrast ratio (typical)	1000:1
Panel type	IPS
Screen shape	Flat
Display resolution	540 x 1092 pixels
Display diagonal	15.2 cm (6")

Processor
Coprocessor cores	4
Coprocessor architecture	ARM Cortex-A53
Coprocessor frequency	1.6 GHz
Coprocessor	Yes
Processor cores	4
Processor architecture	ARM Cortex-A53
Processor model	Helio G36
Processor family	MediaTek
Processor frequency	2.2 GHz

Storage
Maximum memory card size	512 GB
Compatible memory cards	MicroSD (TransFlash)
RAM expansion (max)	2 GB
Internal storage capacity	32 GB
RAM capacity	2 GB

Camera
Video recording modes	720p, 1080p
Resolution at capture speed	1280x720@30fps, 1920x1080@30fps
Rear camera flash	Yes
Front camera field of view (FOV) angle	61.4°
Front camera pixel size	1.12 µm
Front camera aperture number	2.8
Front camera resolution (numeric)	2 MP
Front camera type	Single camera
Front camera lens elements	2-element lens
Rear camera lens elements	3-element lens
Rear camera field of view (FOV) angle	76°
Rear camera pixel size	1.12 µm
Rear camera aperture number	2.2
Rear camera resolution (numeric)	5 MP
Rear camera sensor size	1/5"
Rear camera type	Single camera

Network
Wi-Fi Direct	Yes
Bluetooth version	5.1
Bluetooth	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Voice over LTE (VoLTE) supported	Yes
5G standard	Not supported
4G standard	LTE
3G standards	HSPA
SIM card type	NanoSIM
Mobile network generation	4G
SIM card capability	Dual SIM

Subscription
Subscription type	No subscription

Ports & interfaces
Headphone connectivity	3.5 mm
USB port	Yes

Design
Colour name	Prime Black
Product colour	Black
Form factor	Bar

Performance
Graphics card	IMG GE8320

Navigation
Galileo	Yes
GLONASS	Yes
BeiDou	Yes
GPS (satellite)	Yes
Assisted GPS (A-GPS)	Yes
Position location	Yes

Software
Operating system installed	Android 14
Platform	Android

Battery
Battery recharge time	5.5 h
Battery capacity	3000 mAh

General
Product family	50

Sensors
Accelerometer	Yes

Weight & dimensions
Height	156.5 mm
Depth	9.65 mm
Width	74.9 mm

Packaging content
Cables included	USB
Quick start guide	Yes
