Overview

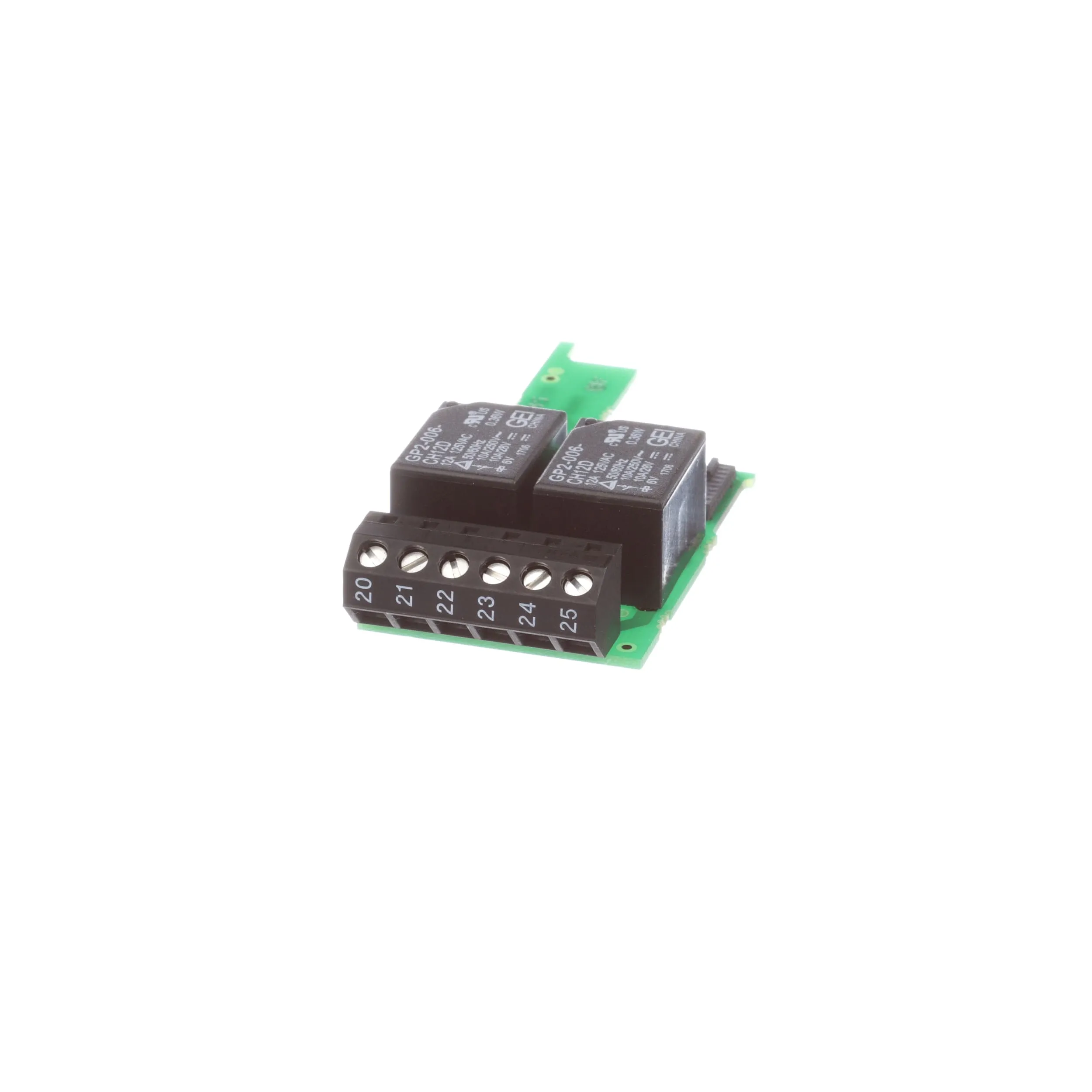

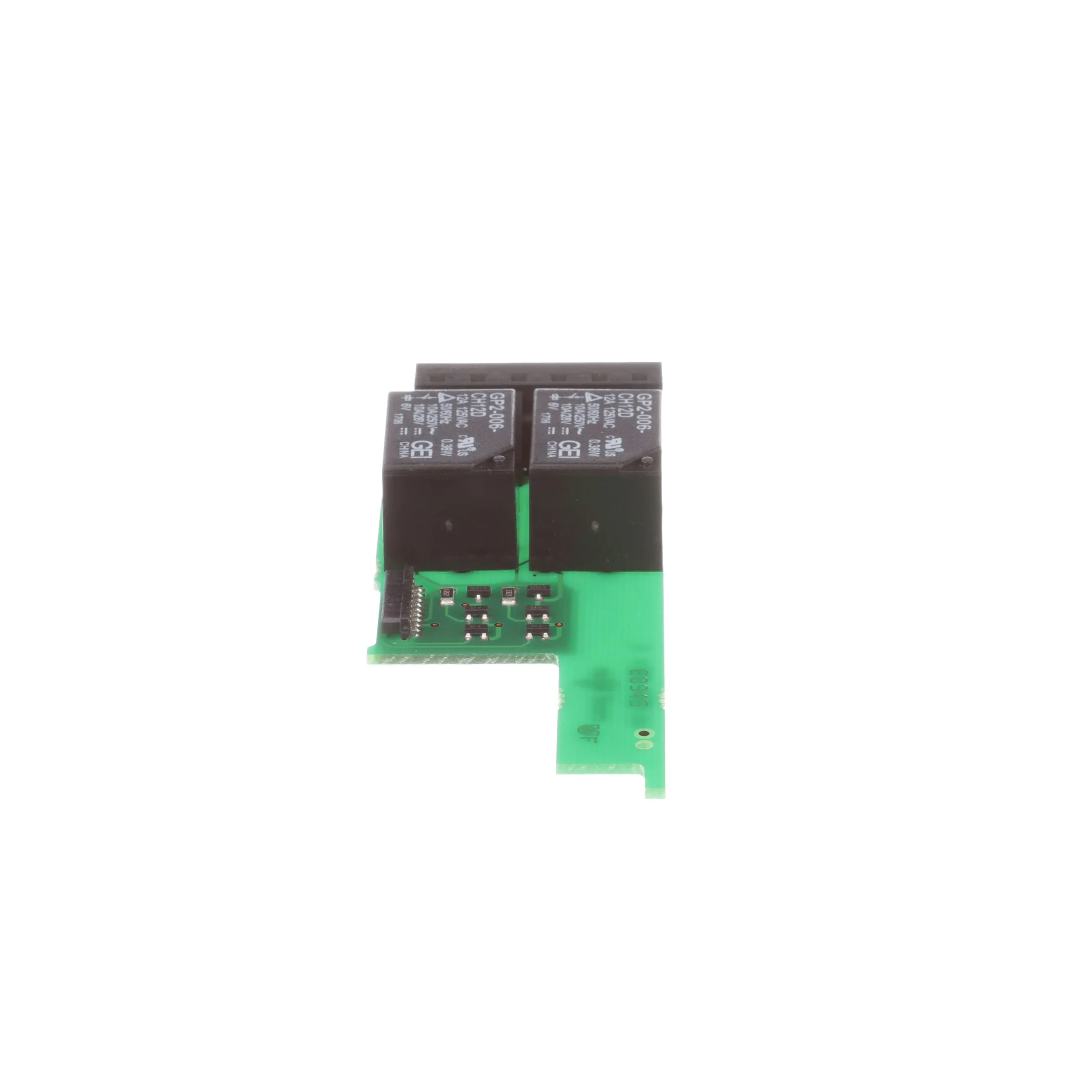

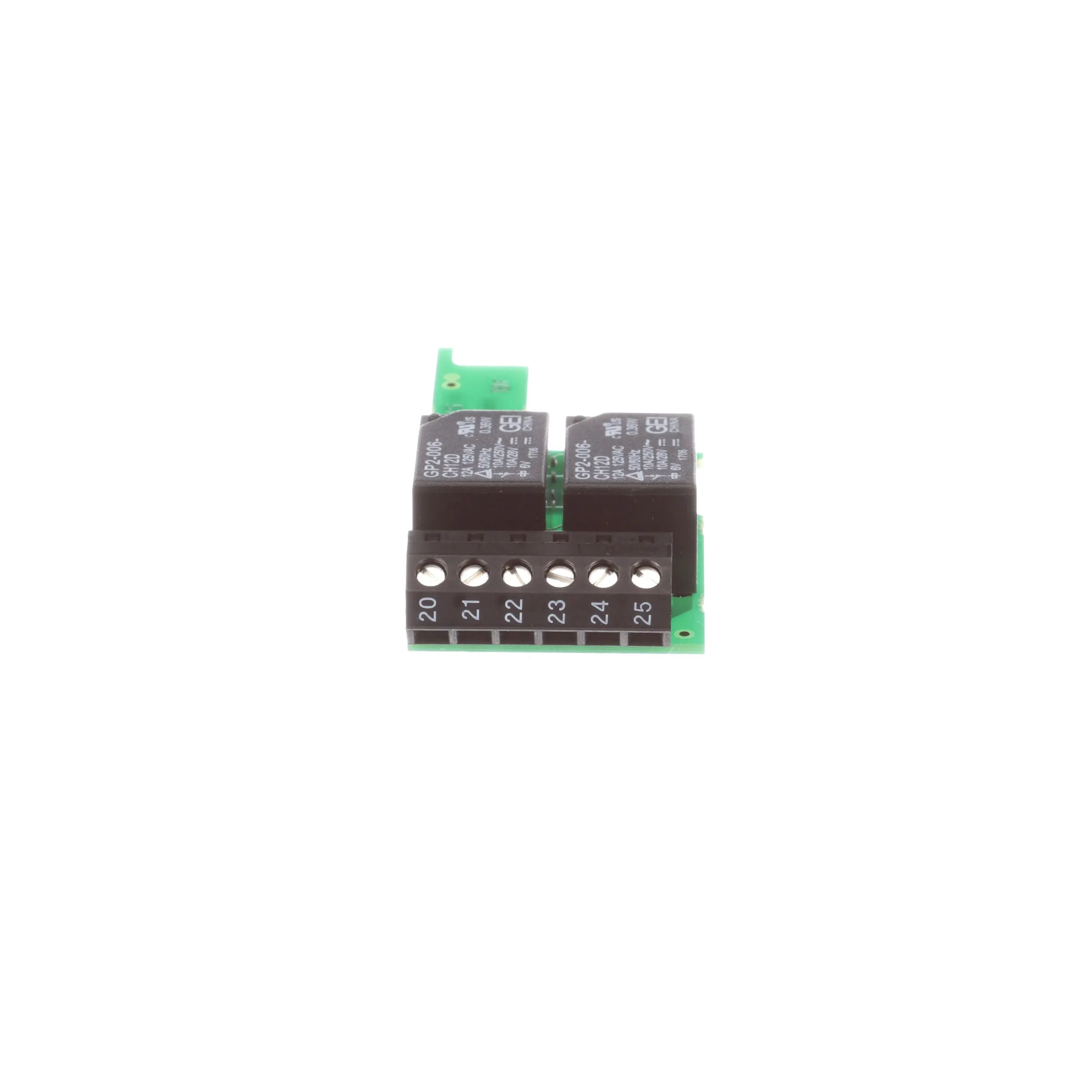

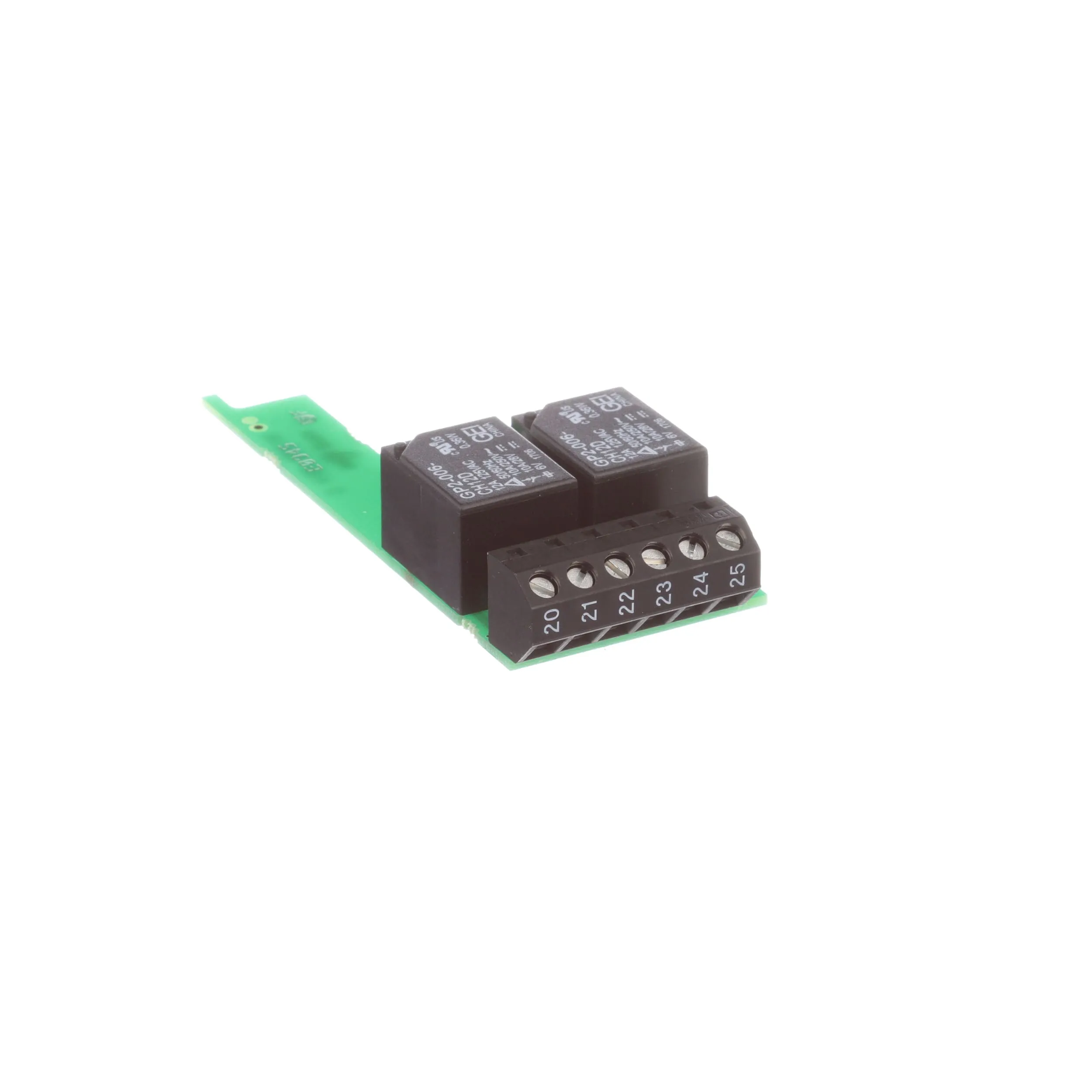

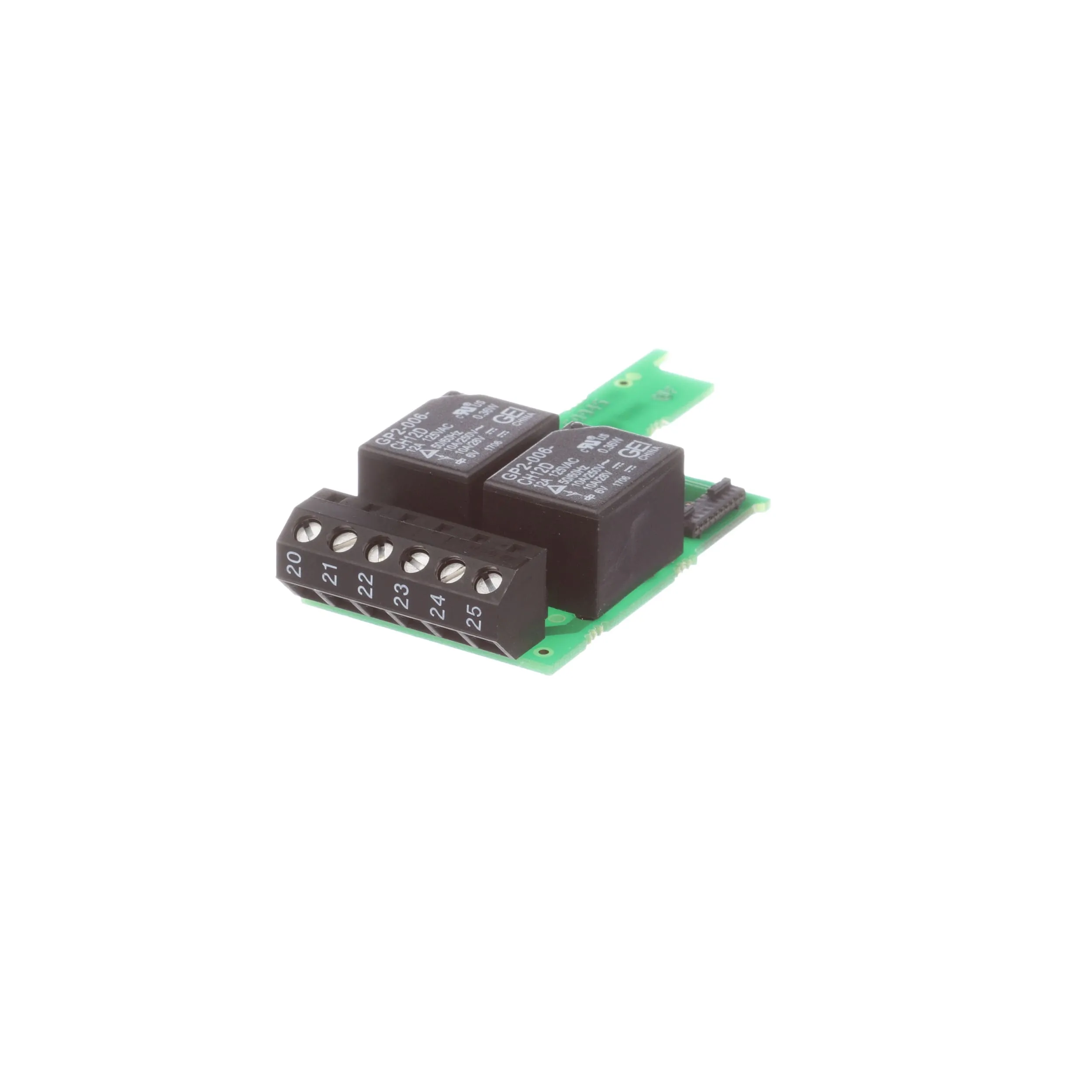

Red Lion PAX Series — Setpoint Output Option Cards:

The setpoint cards are available as dual relay, quad relay, quad sinking transistor, quad sourcing transistor/SSR drive, or dual triac/dual SSR drive outputs. The PAX offers up to four setpoint alarms (option card required) and may be configured to suit a variety of control and alarm requirements. The meter provides a max and min rate reading memory with programmable capture time. The capture time is used to prevent detection of false max or min readings which may occur during start-up or unusual process events. Power input options include 85 to 250 VAC or 11 to 36 VDC / 24 VAC.
