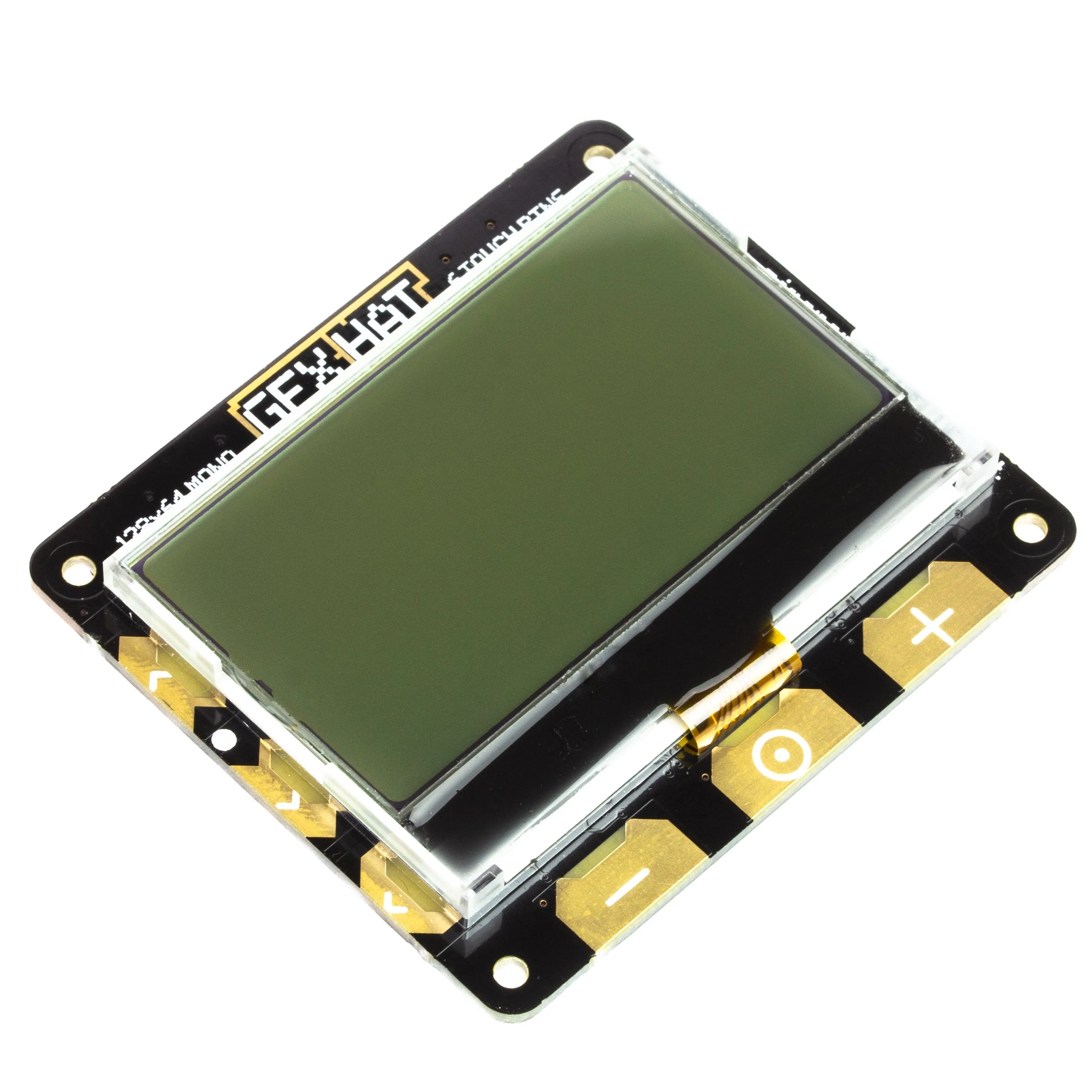

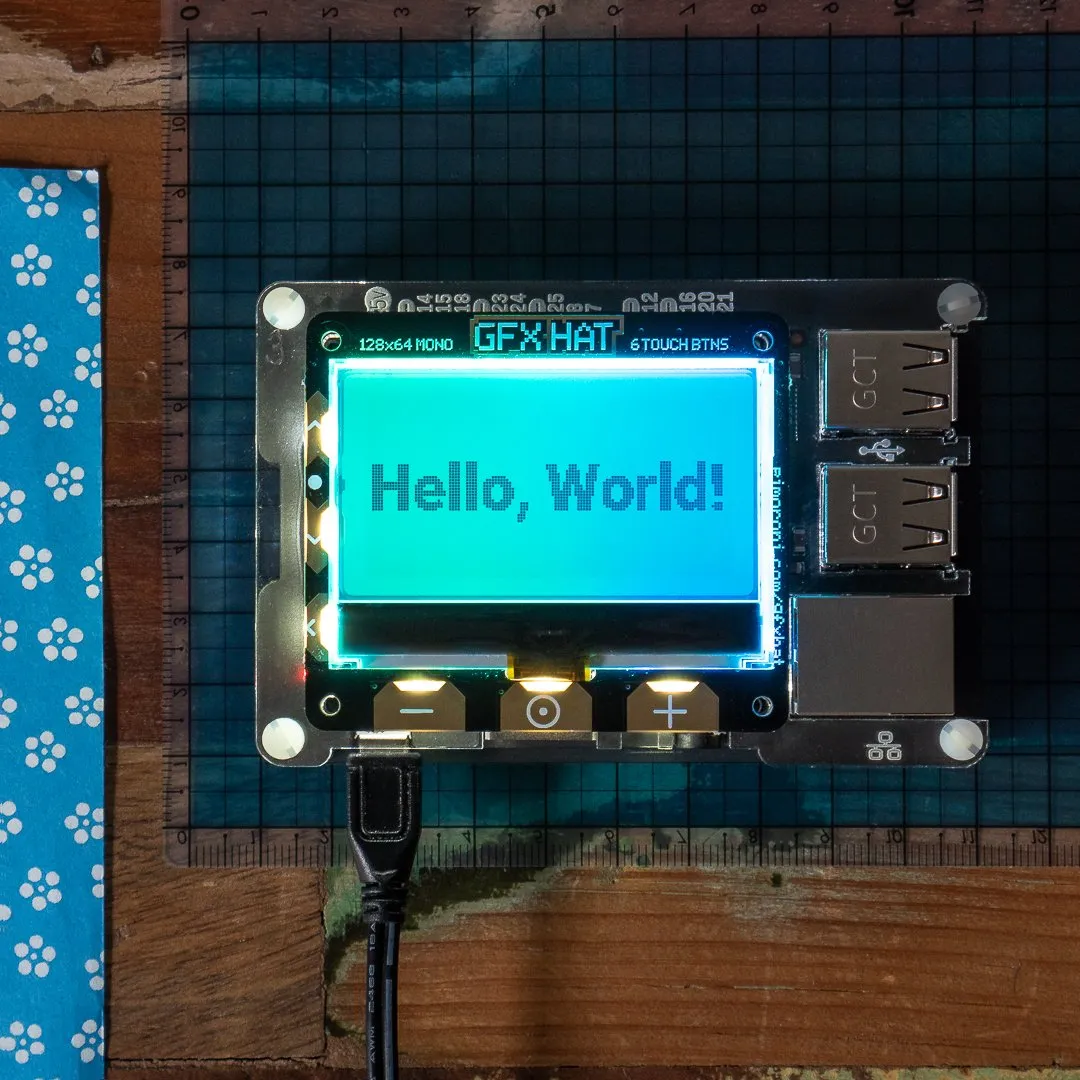

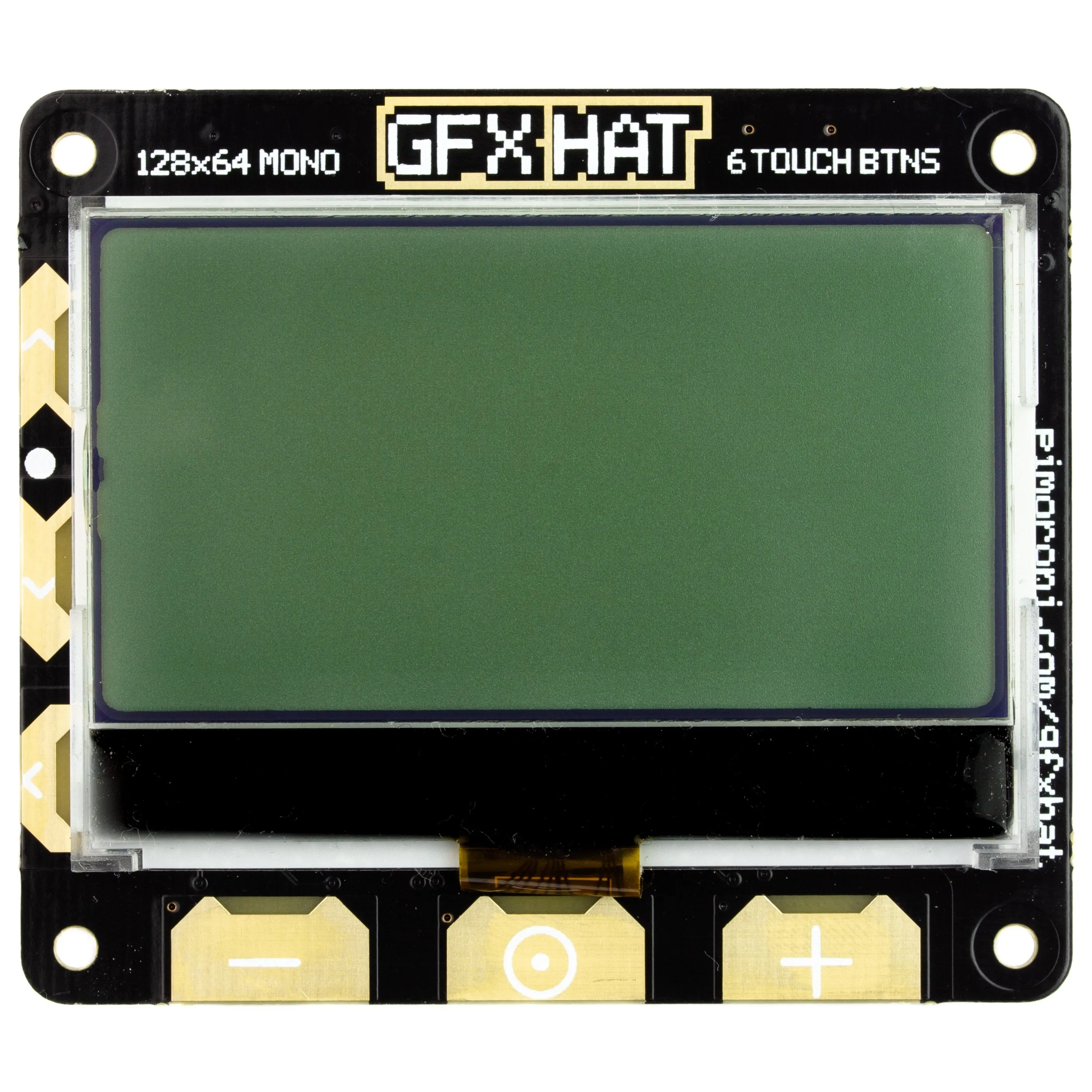

A 128x64 pixel, 2.15" LCD display with snazzy six-zone RGB backlight and six capacitive touch buttons. GFX HAT makes an ideal display and interface for your headless Pi projects.

GFX HAT riffs off our beloved , but gives you the flexibility of individual pixels, letting you display more complex graphics and real typefaces, while retaining the handy capacitive touch buttons for input/navigation.

Features

• 128x64 pixel, 2.15" LCD display
• Integrated diffuser/reflector assembly
• Six-zone RGB LED backlight

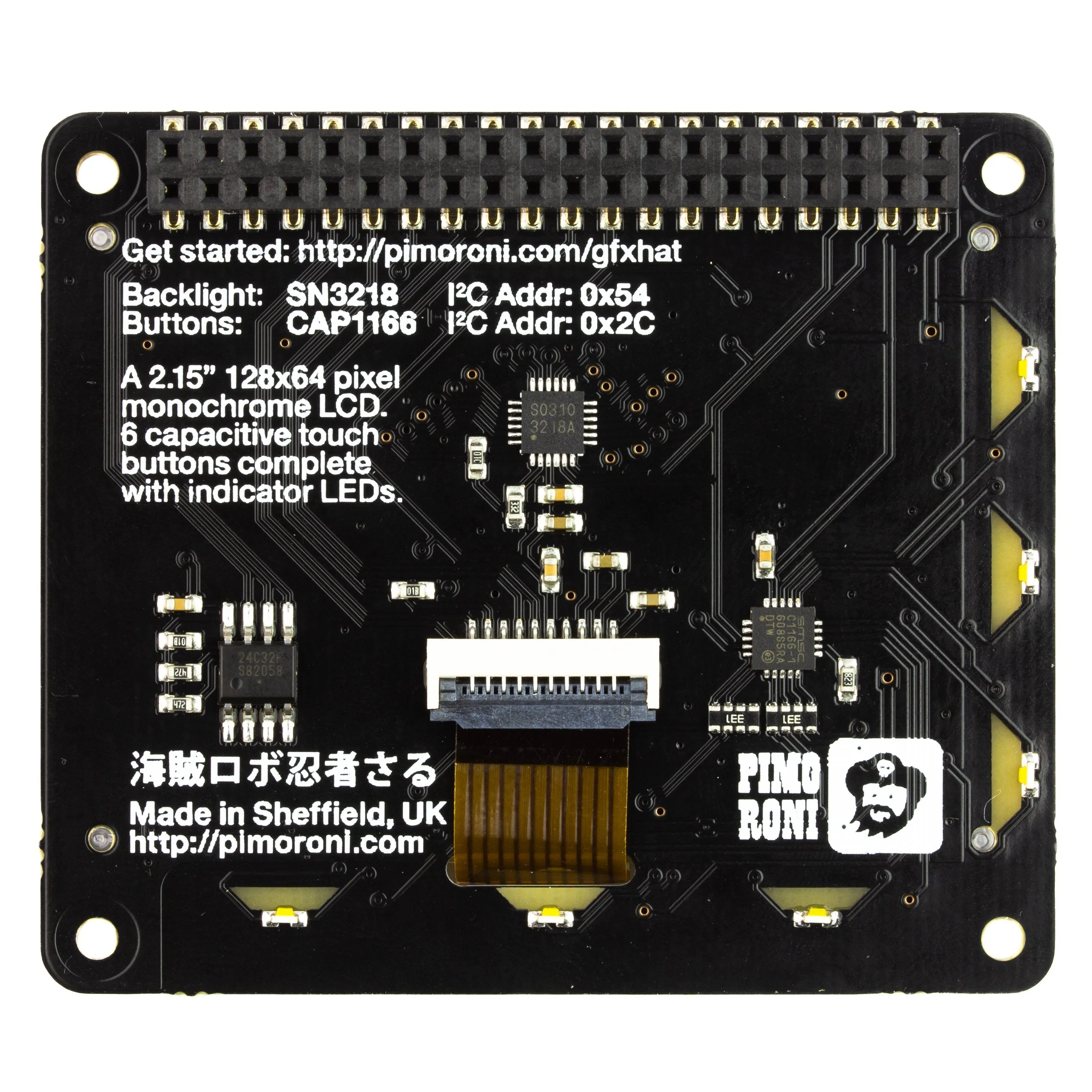

• SN3218 LED driver chip (I2C address 0x54)
• Six capacitive touch buttons with white LEDs
• Microchip CAP1166 capacitive touch/LED driver chip ((I2C address 0x2c)
• Compatible with all 40-pin header Raspberry Pi models
• Comes fully assembled

Software

Our handles displaying on the LCD, controlling the backlight, and linking functions to the touch buttons. We've also included a to get you started.
