Name: Eliminator MEGA HEX L PAK4 RGBLA UV LED Wash Light Kit (4-Pack)
SKU: 549107

Product Details ＋

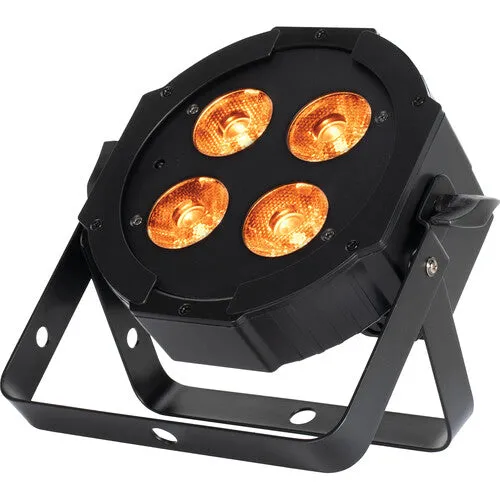

Produce a wide variety of bright color washes and smooth color mixing with the Eliminator Lighting Mega Hex L Pak4, a 4-pack of low-profile RGBLA UV (red, green, blue, amber, and white, plus ultraviolet) LED Par fixtures, each equipped with four 20W (6-in-1) Hex LEDs that have a beam angle of 17°. Create amber washes with 15 white color temperature presets or vibrant lime-infused hot pinks, lurid greens, and electric blues or make the classic UV glow for venue uplighting and heat-free illumination for stage performers.

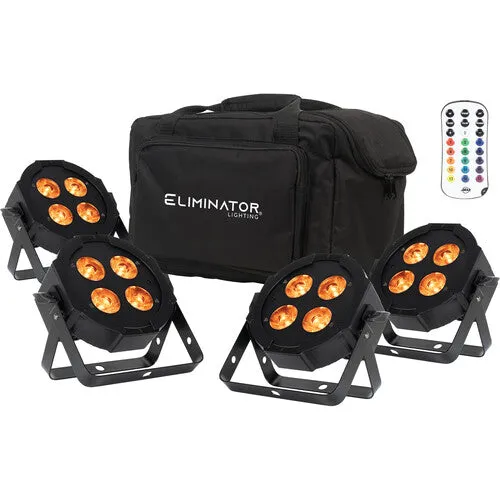

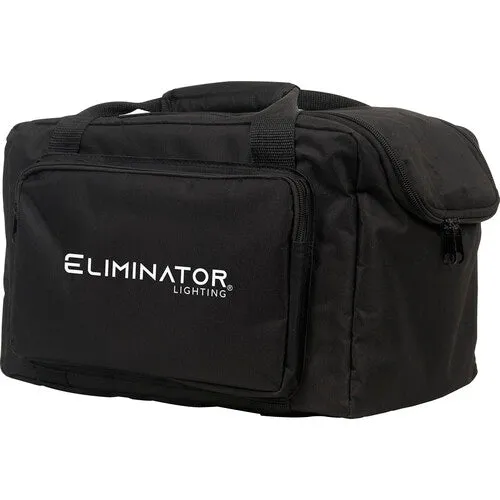

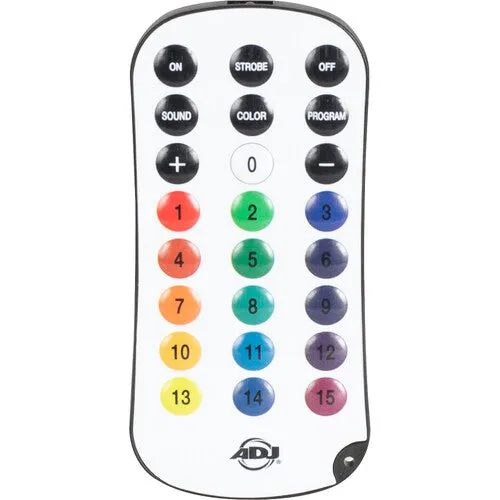

Featuring a flat profile with convenient side-positioned power and DMX in/out sockets, each Mega Hex Par can sit directly on the ground or inside a truss without the scissor yoke—ideal for architectural wall washing. The Mega Hex L Pak4 is wirelessly controllable with the included UC IR remote. The kit includes four fixtures, four IEC power cords, three 6.6' 3-pin DMX cables, a carrying bag, and the Eliminator UC IR wireless remote.

Features

Four compact, low-profile PARs designed for uplighting and stage washes

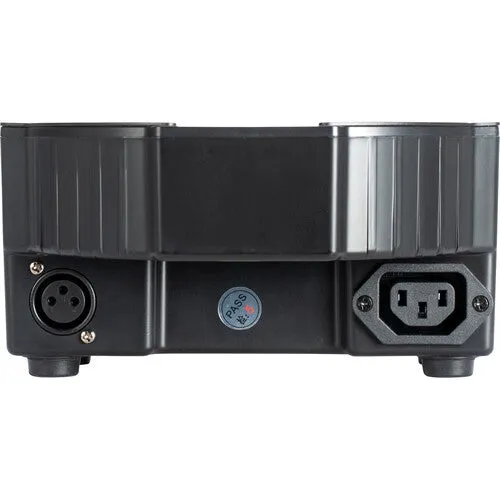

Proprietary sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning the fixture flat on the ground or recessed inside a truss
4 x 20W, 6-in-1 RGBLA UV (red, green, blue, lime, amber ultraviolet) LEDs offers smooth color mixing—fast or slow color change operation
Create a classic UV glow effect as well as exciting UV-infused colors—hot pinks, lime greens, electric blues
15 white color temperature presets
Variable-color strobe effect
0-100% electronic dimming with five dimmer curves (Standard, Stage, TV, Architectural, Theater)
17° beam angle
Flicker-free light for use with video applications
Standalone or Master/Slave configurations
Daisy-chain power for up to 20 units at 120V and 40 units at 230V

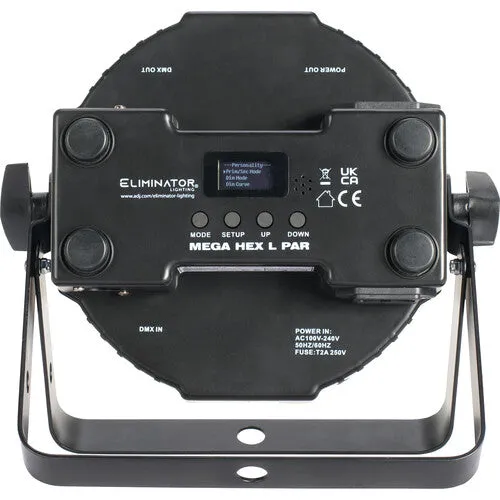

Digital DMX display with 4-button menu for easy navigation
Integrated scissor yoke to hang fixture on a truss, mount on a wall, or set on the ground
Multivoltage operation: 100-240 VAC, 50/60 Hz, auto-sensing

Control

7 DMX Channel modes: 6, 8, 9, 12, 14, 15, and 17 channel modes
5 Operational modes: Auto Run Mode (16 Color Change Mode, 16 Color Fade Modes, and 1 Combined Mode), Sound Active Mode (16 Modes), RGBLA UV Dimmer Mode, Static Color Mode (63 Colors), and DMX Controlled
4-button with OLED display menu for easy navigation
Stand Alone or Primary/Secondary Configuration
DMX-512 protocol

Specifications

Light

Fixture Type	PAR
Light Source	4x Color/UV LED - 20 W
Expected Lamp Life	50,000 Hours
Colors	Amber, Blue, Green, Lime, Red, Ultraviolet
Color Temperature	2300 to 9900K
Beam Angle	17°
Shutter / Strobe	Electronic
Dimming	Electronic, 0 to 100% with 6 Dimmer Modes

Performance

Operating Modes	Automatic, Color Dimmer, DMX, Primary/Secondary, Sound-Active
Macros / Programs	63x Color Macro 13x Auto-Program 15x Color Temperature
Effects	Strobe
Gobos	No

Control

Control Protocols	DMX512
DMX Channel Modes	7 Mode(s): 6 / 8 / 9 / 12 / 14 / 15 / 17-Channel
Display / Controls	LED / 4-Button
Remote Control	IR Remote (with Included Equipment)
Mobile App Compatible	No

Connectivity

Inputs/Outputs	1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output
Wireless	IR *Built-In

Power

AC Input Power	100 to 240 VAC, 50/60 Hz
AC Power Connector	Input: 1x IEC Output: 1x IEC Plug Type: NEMA 5-15
Power / Current Consumption	24 W
Power Linking	20 Units at 120 VAC 40 Units at 230 VAC

Environmental

Environmental Protection

Physical

Mounting	Dual/Scissor Yoke
Included Accessories	1x Power Cable 1x Filter 1x Controller
Duty Cycle	No
Exterior Color	Black
Certifications	ETL
Dimensions	10.25 x 10.25 x 4.25" / 260.35 x 260.35 x 107.95 mm
Weight	4 lb / 1.8 kg
