Name: Cameo Pro ZENIT Z120 G2 Professional 120W RGBW COB Zoom PAR IP65
SKU: 542214

Product Details ＋

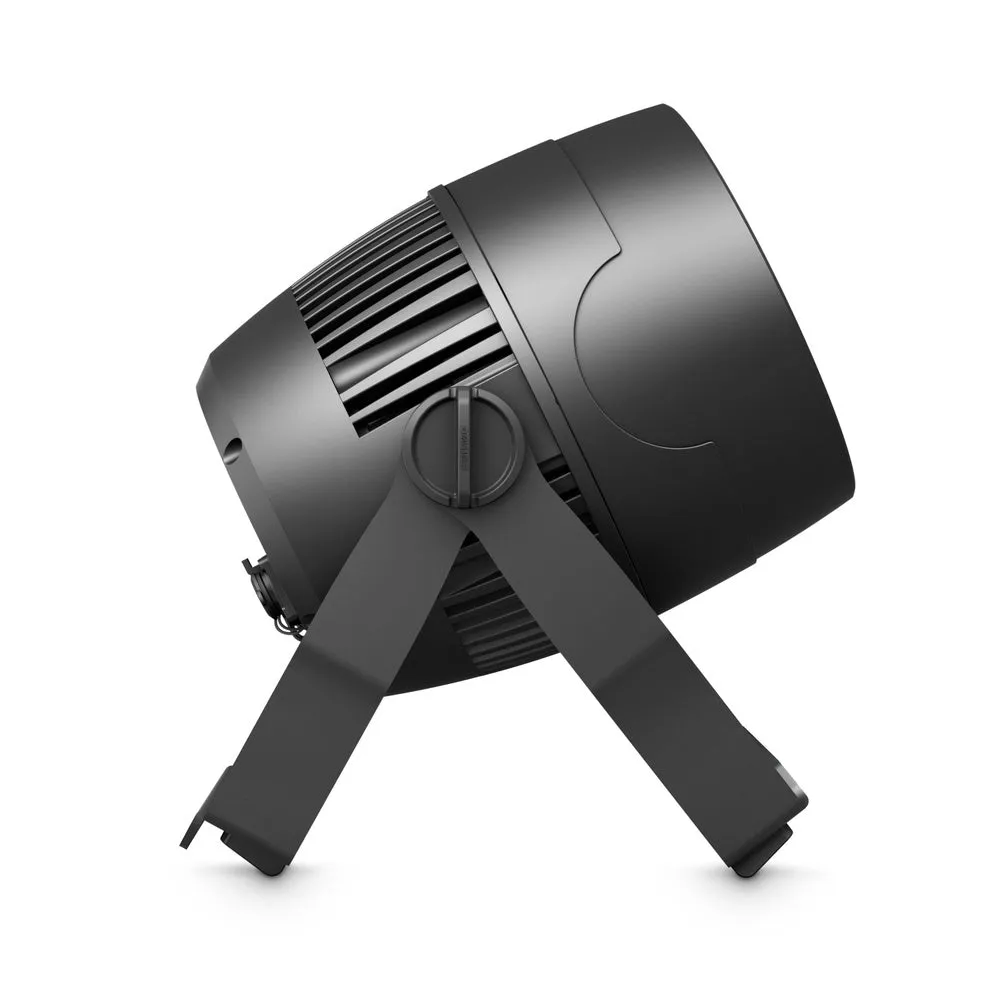

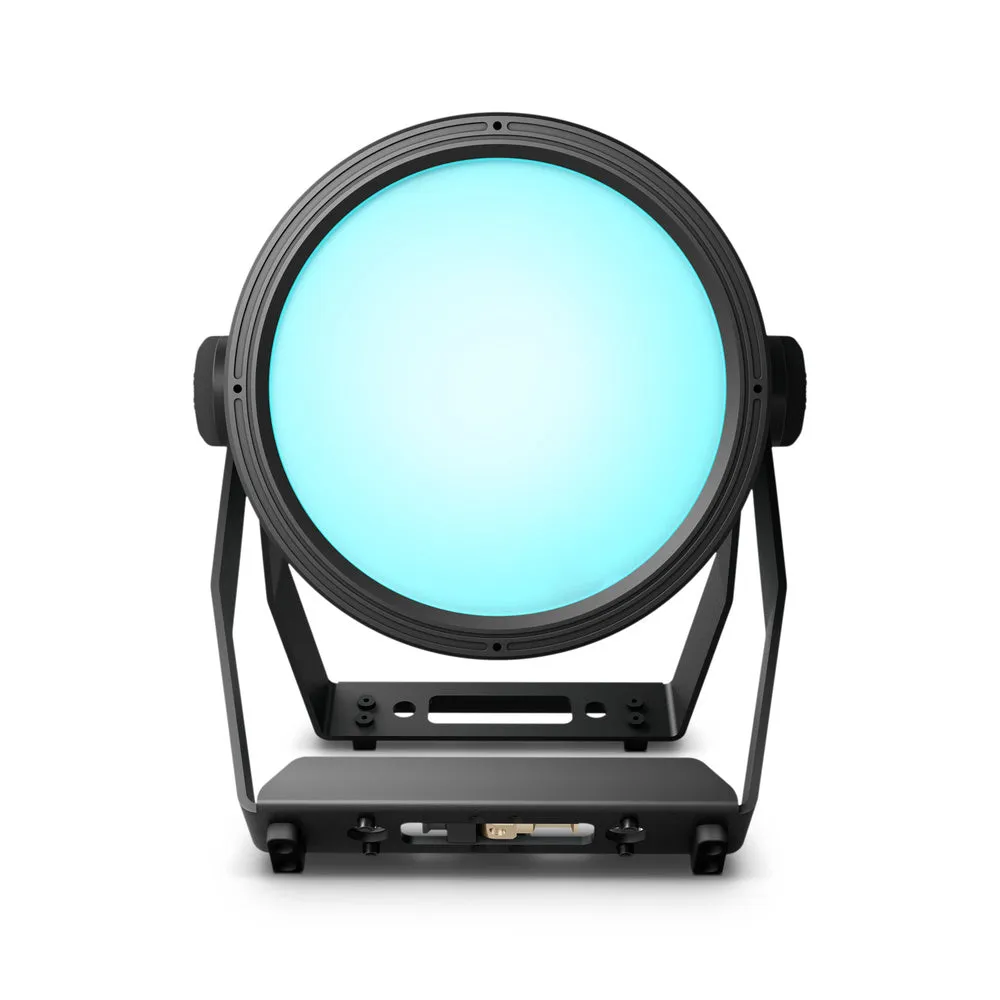

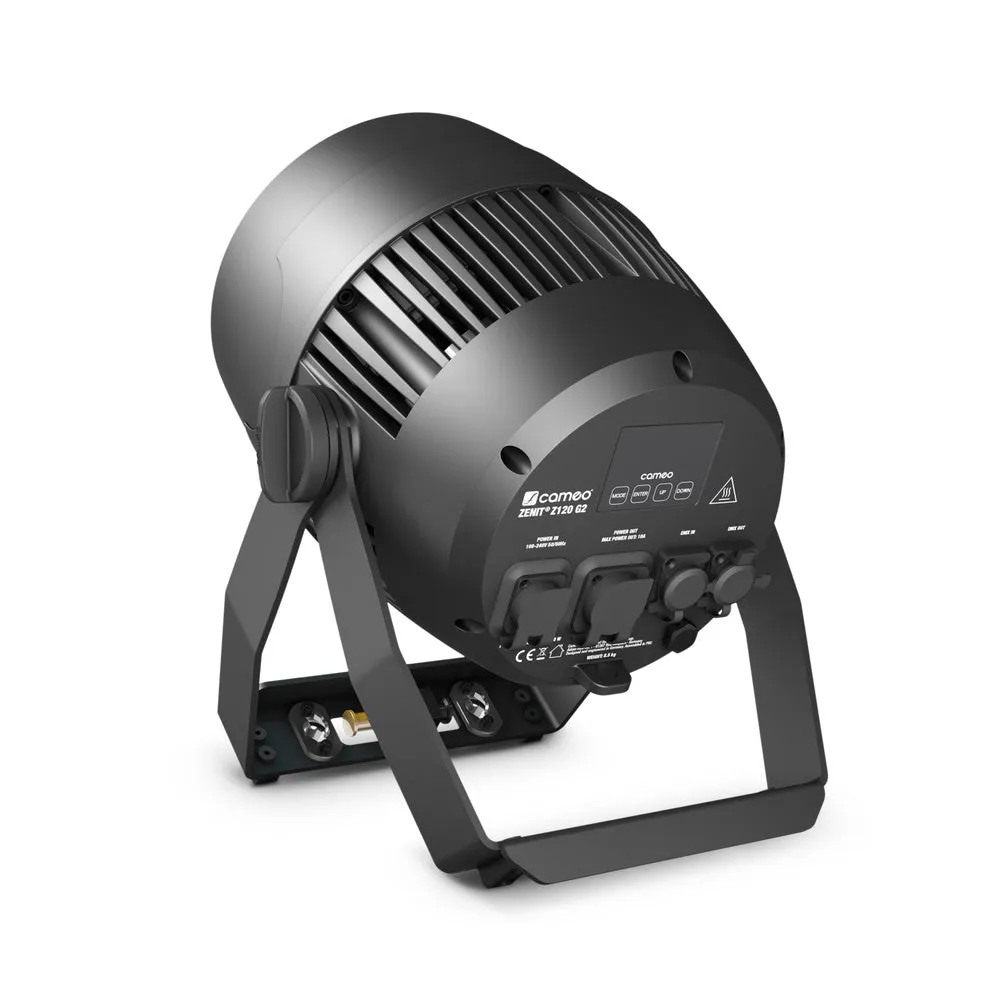

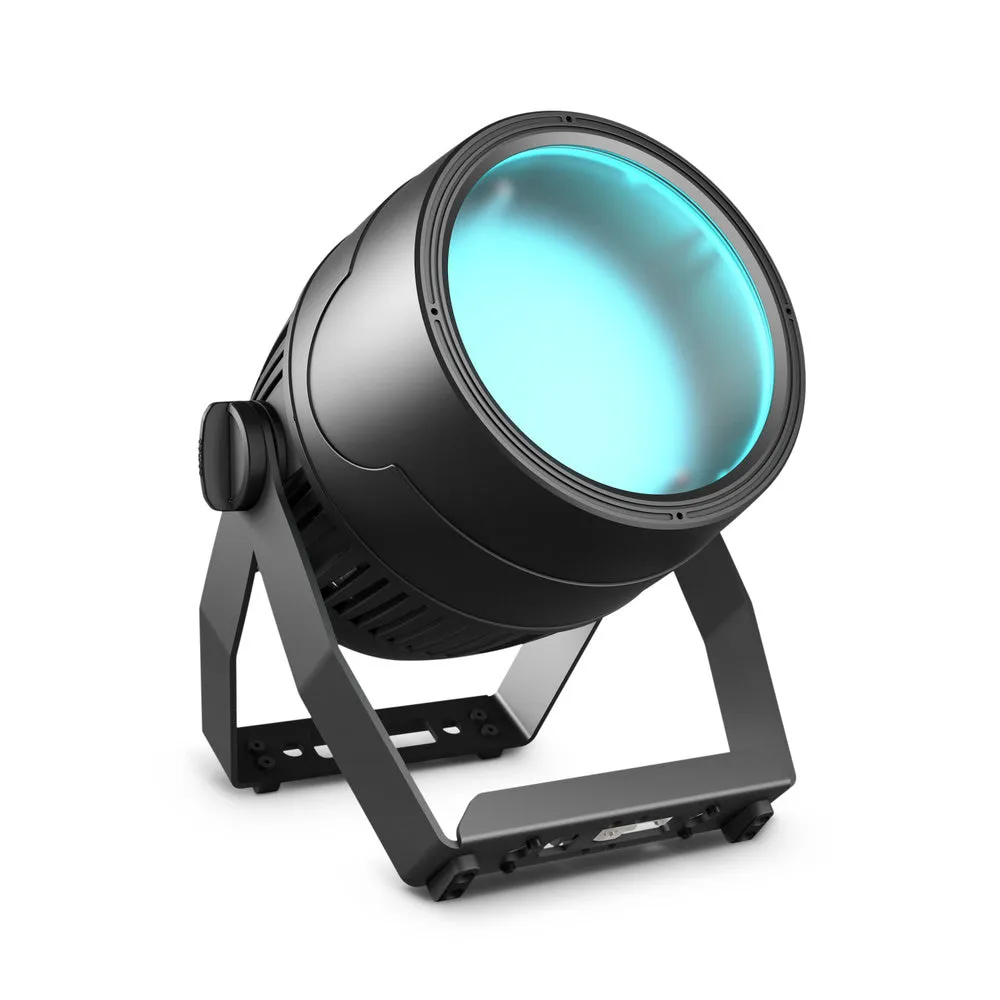

Following the hugely successful ZENIT® Z 120, Cameo now introduces the ZENIT® Z 120 G2 featuring an OLED display and patent pending mounting bracket which integrates a super clamp stud. The RDM enabled high output PAR can for demanding professional applications employs a single long-life 120 watt RGBW COB LED and 16-bit technology for vivid high-resolution colour mixes with maximum uniformity and perfect dimming behavior. Covering a range from 7° to 55°, the motorized zoom provides flexible illumination from tightly focused, narrow beams to wide, diffuse washes.

With a 3.600 Hz refresh rate for flicker free operation and IP65 rating the ZENIT® Z 120 G2 is eminently suitable in TV, film and outdoor applications. The PAR can's advanced features include colour temperature correction, variable white balance and 4 selectable dimming curves with adjustable response to mimic the ramp-down of halogen bulbs.

Sporting 7 modes of DMX control, the ZENIT® Z 120 G2 is also capable of master, slave and standalone operation. A bright OLED display with 4 touch buttons facilitates menu navigation and configuration while a security lock prevents unauthorized access. The heavy-duty diecast aluminium housing utilizes highly efficient convection cooling for completely silent operation. 5-pin DMX connectors e powerCON TRUE1 enable daisy chaining. The Cameo ZENIT® Z 120 G2 runs on all voltages from 100 - 240 V AC.

Features

Professional high output PAR can with 7° - 55° zoom
Patented SPIN16® technology for fast and flexible installation thanks to 16 mm TV spigot integrated in the mounting bracket
120 W RGBW COB LED
High resolution 16-bit colour mixing and dimming
Colour temperature correction
Variable white balance
4 selectable dimming curves with adjustable response
Easy configuration via OLED display and 4 touch buttons
Security lock against unauthorized menu access
RDM enabled
Flicker free, ideal for TV and film applications
IP65 rating for outdoor use

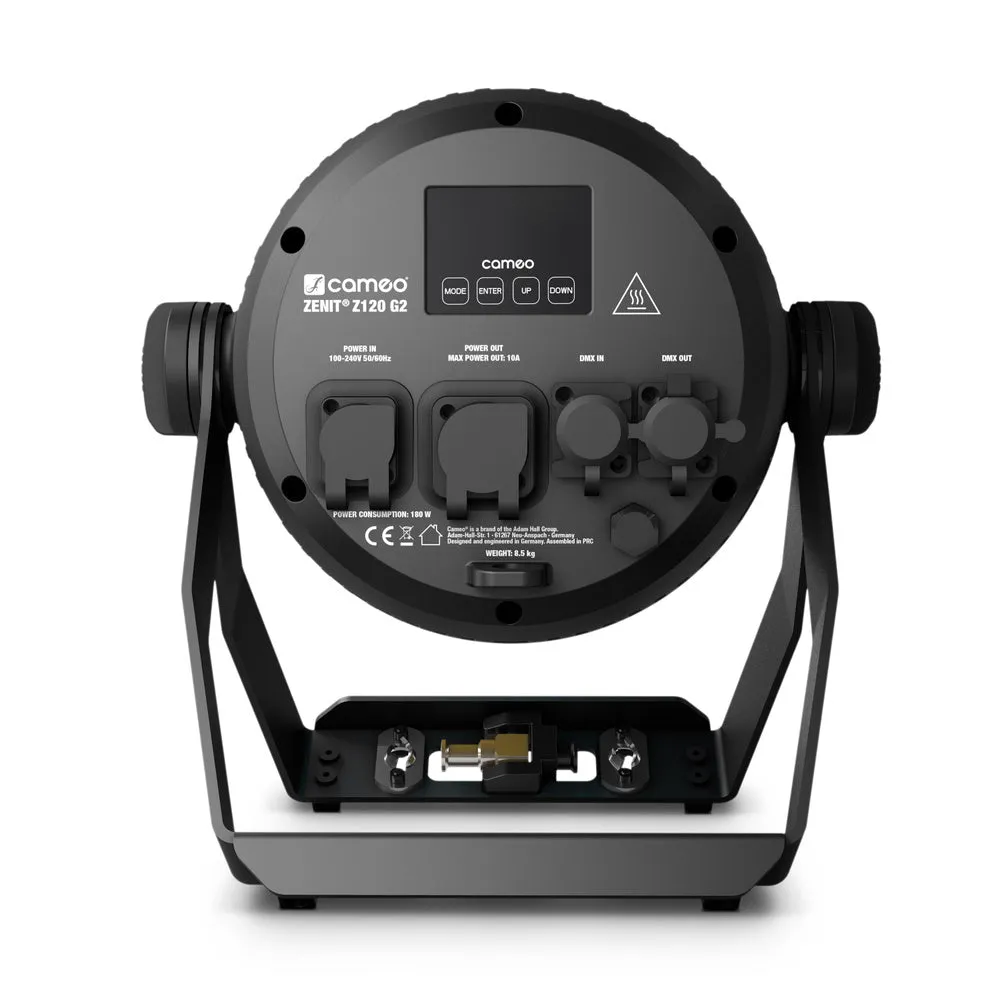

5-pin DMX connectors, power input and output compatible with powerCON TRUE1
Optional Cameo Omega Bracket (CLOMEGABRACKET1) available as accessory

Specifications

Product type: LED PAR Lighting
Type: Outdoor
Colour spectrum: RGBW
Number of LEDs: 1
LED type: 120W (approx. 50000 operating hours)
Refresh rate: 3600 Hz
Dispersion: 7 - 55 °
DMX input: 5-pin IP65
DMX output: 5-pin IP65
DMX mode: 10-channel, 11-channel, 17-channel, 3-channel, 4-channel, 5-channel, 9-channel
DMX Functions: colour fade, colour jump, colour macro, Colour temperature correction, Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, reset, RGBW, RGBW Fine, Strobe, Zoom, Zoom Fine
Standalone modes: colour fade, colour jump, colour macro, Dimmer Curve, Dimmer Response, Display Lock, Master / Slave mode, static colour, Strobe, White Balance adjustable
Controls: Down, Enter, Mode, Up
Indicators: OLED Display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 180 W
Power connector: TRUE1 compatible Power I/O sockets
Housing material: Die-cast aluminium
Cabinet colour: Black
Protection class IP: 65
Cooling: Convection
Illuminance: (55°) 3900 lx @ 1 m, (7°) 62000 lx @ 1 m
Luminous flux: 2117 lm
Operating Temperature: -15 - 45 °C
