Product Details
＋
Brand: AutoMeter
Manufacturer's Part Number: 9113
Part Type: Data Acquisition Components
Product Line: AutoMeter CAN Bridge Data Modules
Automotive Fittings Part Number: ATM-9113
UPC: 046074091131
Data Acquisition Component Type: CAN sensor modules
Quantity: Sold individually.
Notes: For use with Invision dash or Autometer gauges.
Description:

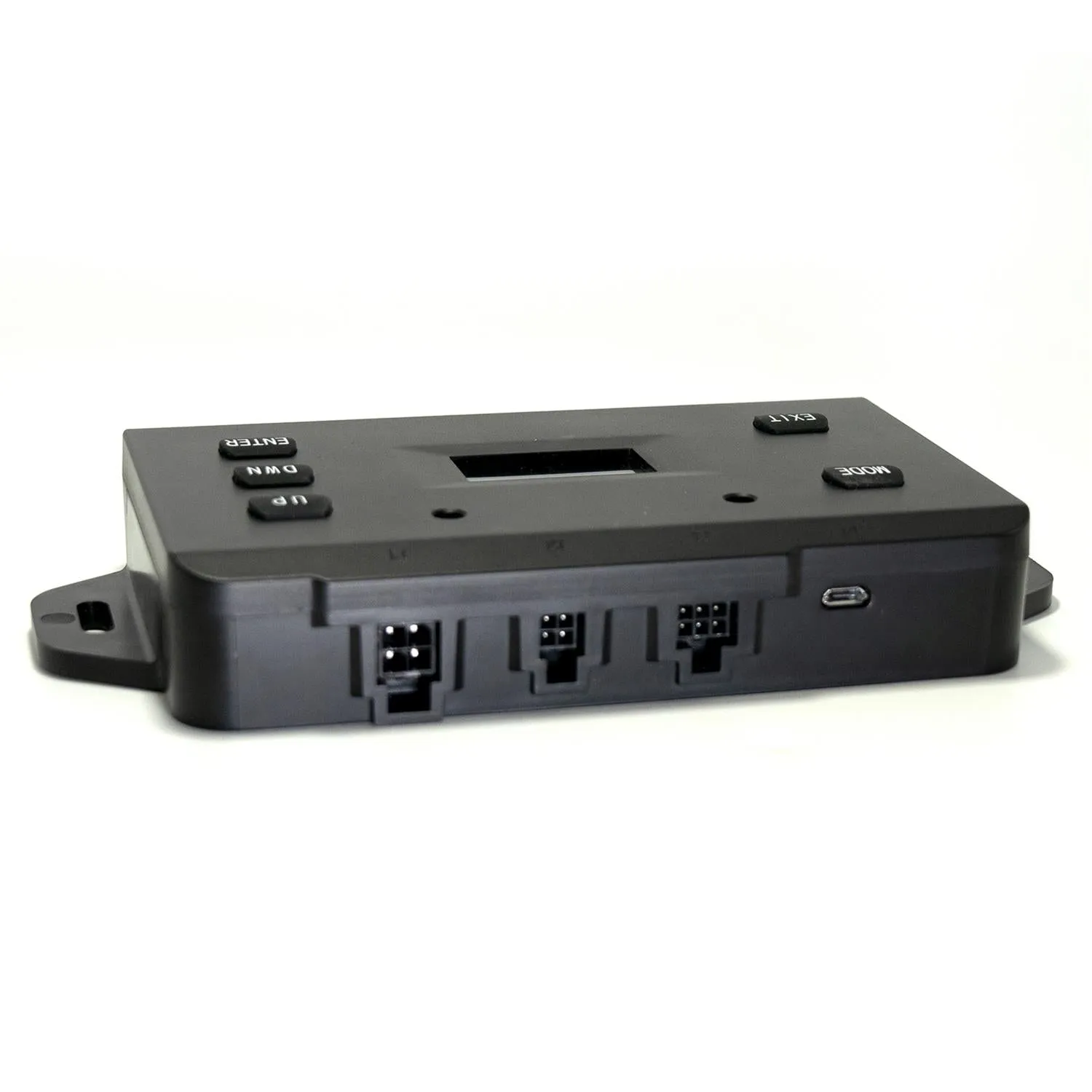

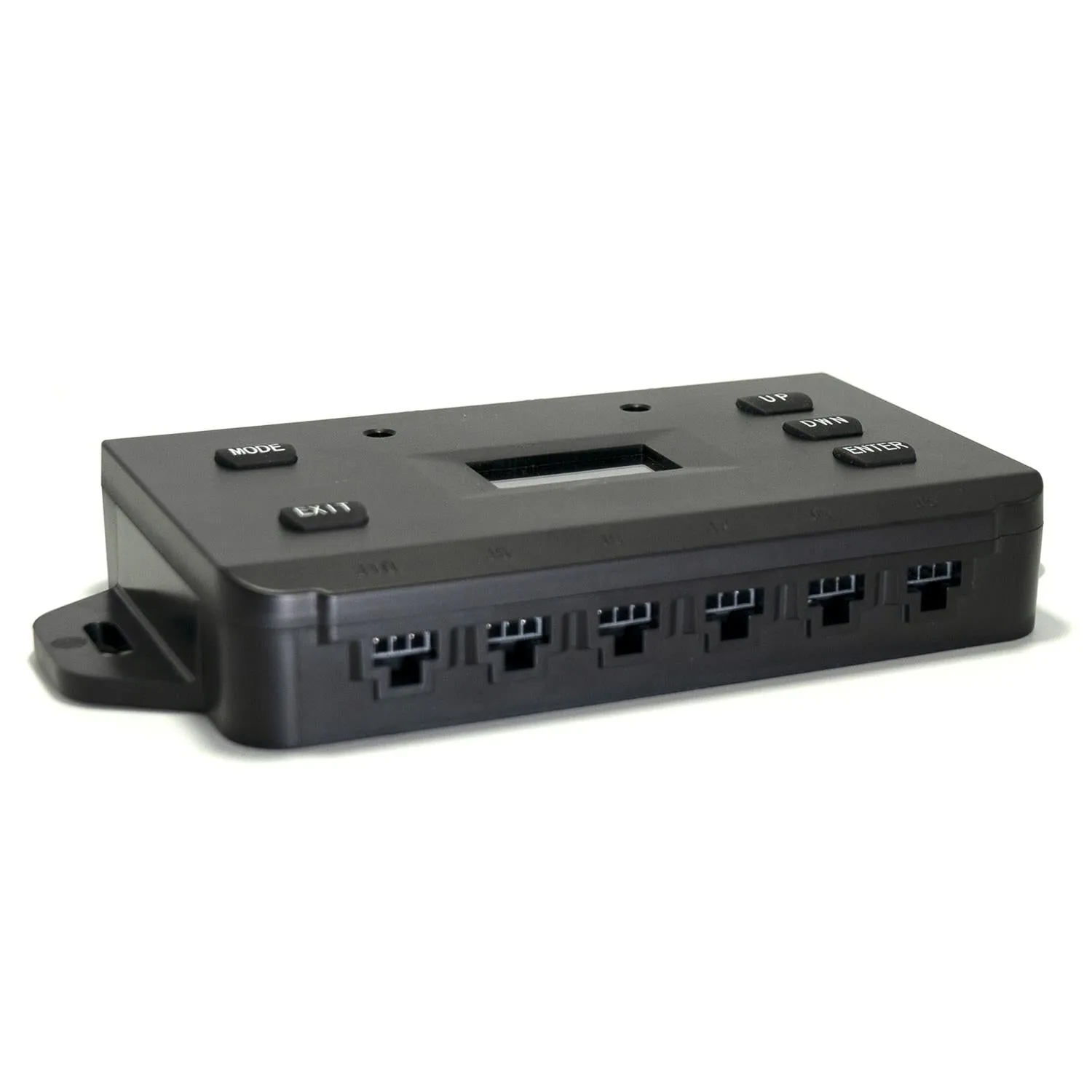

AutoMeter CAN Bridge data modules are the ideal solution to streamline adding gauges or an InVision LCD dash to OBDII based engine and vehicle platforms (2008 ). The intuitive CAN Bridge simply plugs into the diagnostic port and captures the existing sensor data and outputs up to six signals to drive a tachometer, speedometer, temperature, pressure, fuel level (0-90 ohm only), and volts on your vehicle. Quickly and easily setup your system to output the available parameters of your choice by utilizing the CAN Bridge data module's menu navigation buttons and OLED display. With this advanced CAN Bridge system from AutoMeter, you can now simplify your next instrumentation installation on your ride!
Additional features:
* Works with most OBD-II applications which is standardized across all OEMs starting in 2008

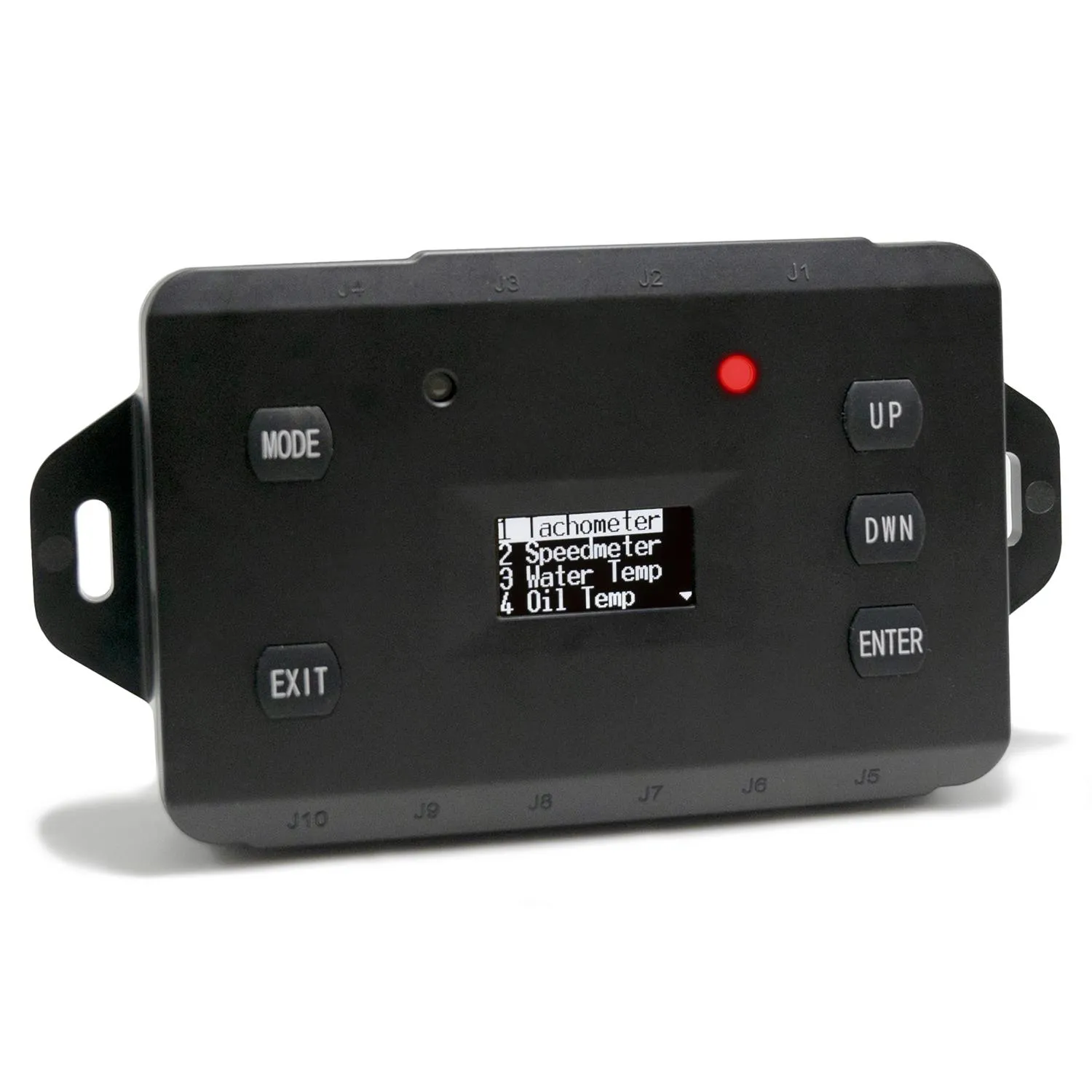

* Module includes OLED display and five push buttons to effortlessly navigate menus and program system for operation

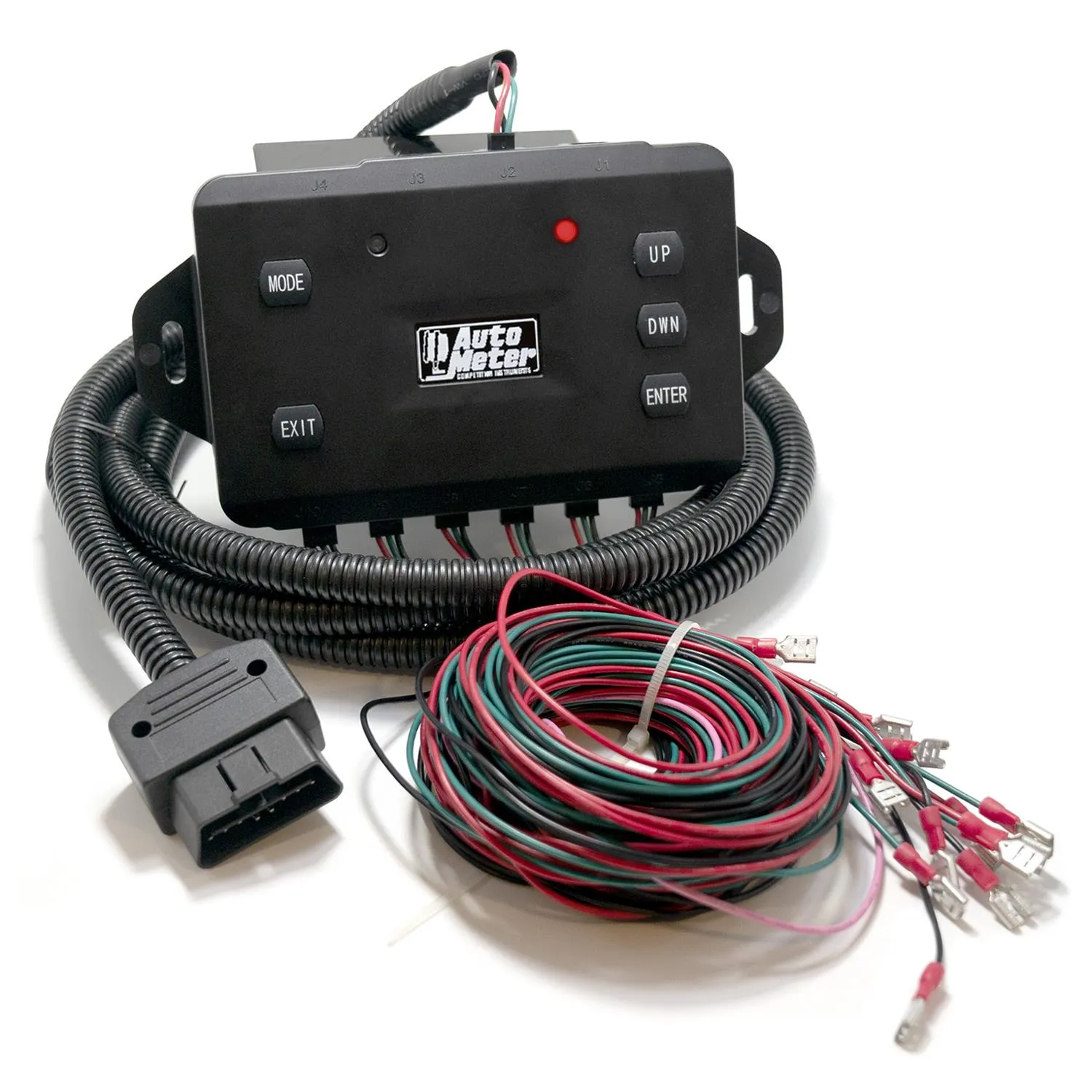

* Plug-and-play from OBDII to traditional round AutoMeter short sweep electric gauges, tachometers, electronic speedometers, and InVision LCD dashes
* Six total channels available: tachometer, speedometer, fuel level (0-90 ohm only), temp, pressure, and volts
* Simplifies instrumentation wiring and installation; no sensors to hookup, which means less wires to connect
* Sensor data must be present on the data stream to function, otherwise a discrete sensor must be used
