ROG STRIX B250G GAMING

Name: ASUS ROG STRIX B250G GAMING Intel B250 LGA1151 micro ATX ddr4 2400MHz dual M.2 hdmi dvi sata 6Gbps
SKU: 379638

Condition:Open box

Fully tested and working 100% Tested. And equipped with I / O shield.Note:not include battery.(USA, Canada, Australia, United Kingdom, EU The package will arrive in 8-15 days. And we offer fast arrival service. It only takes 1 day to arrive at the earliest.)

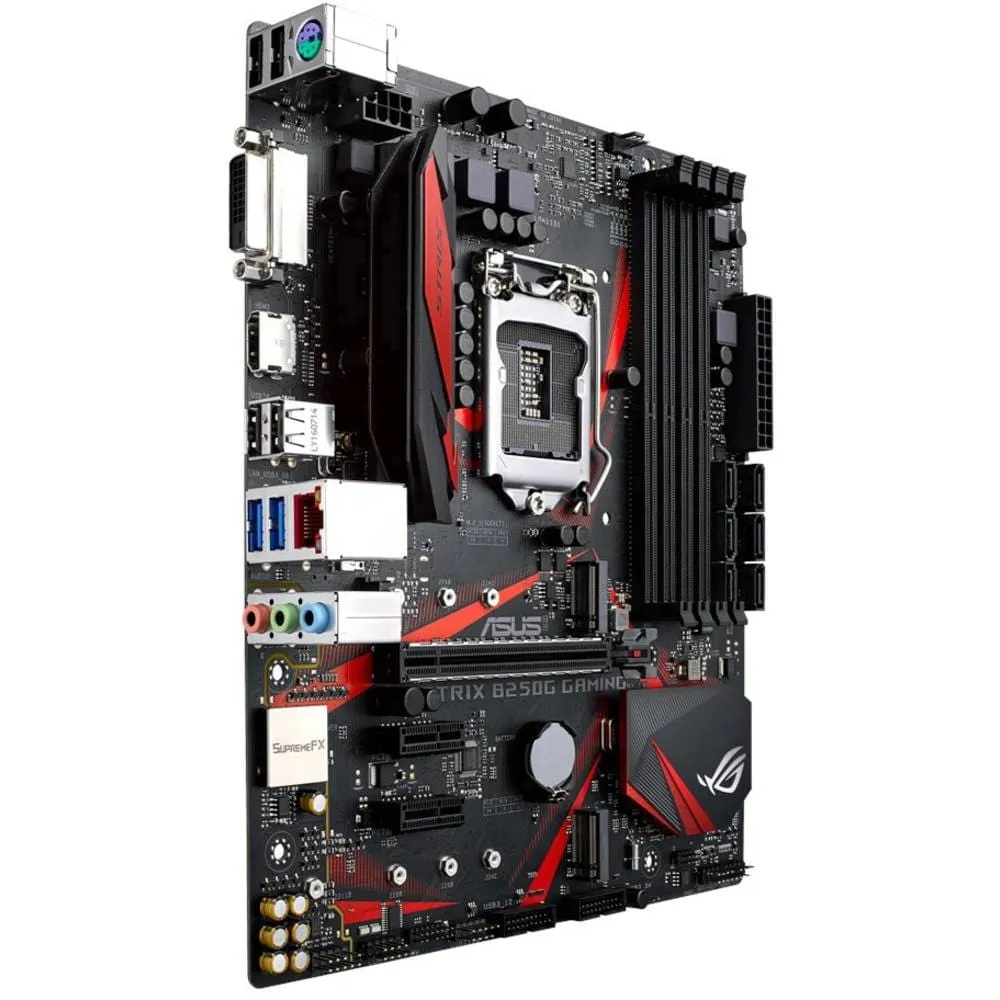

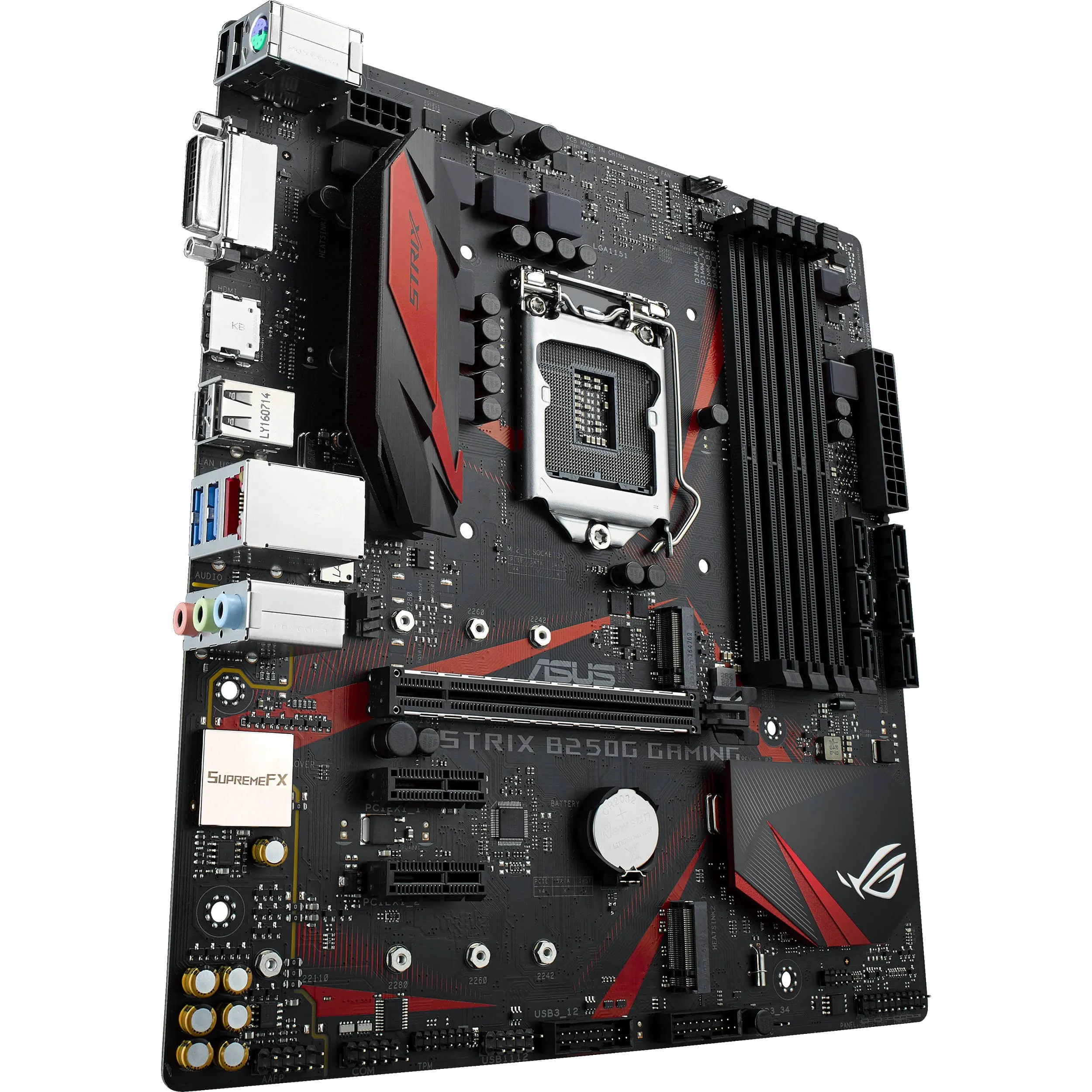

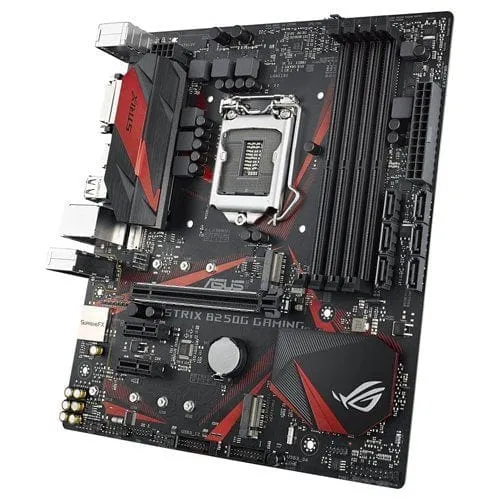

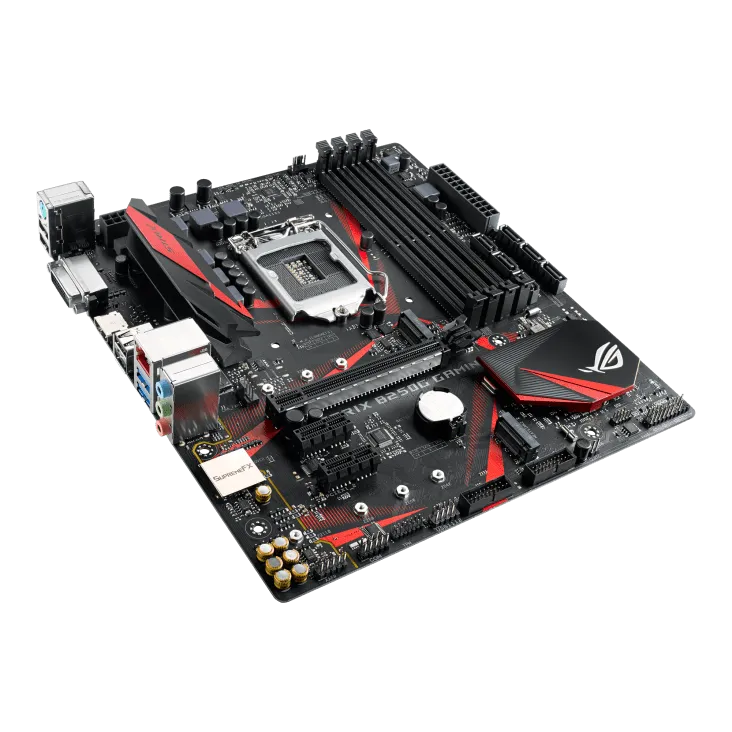

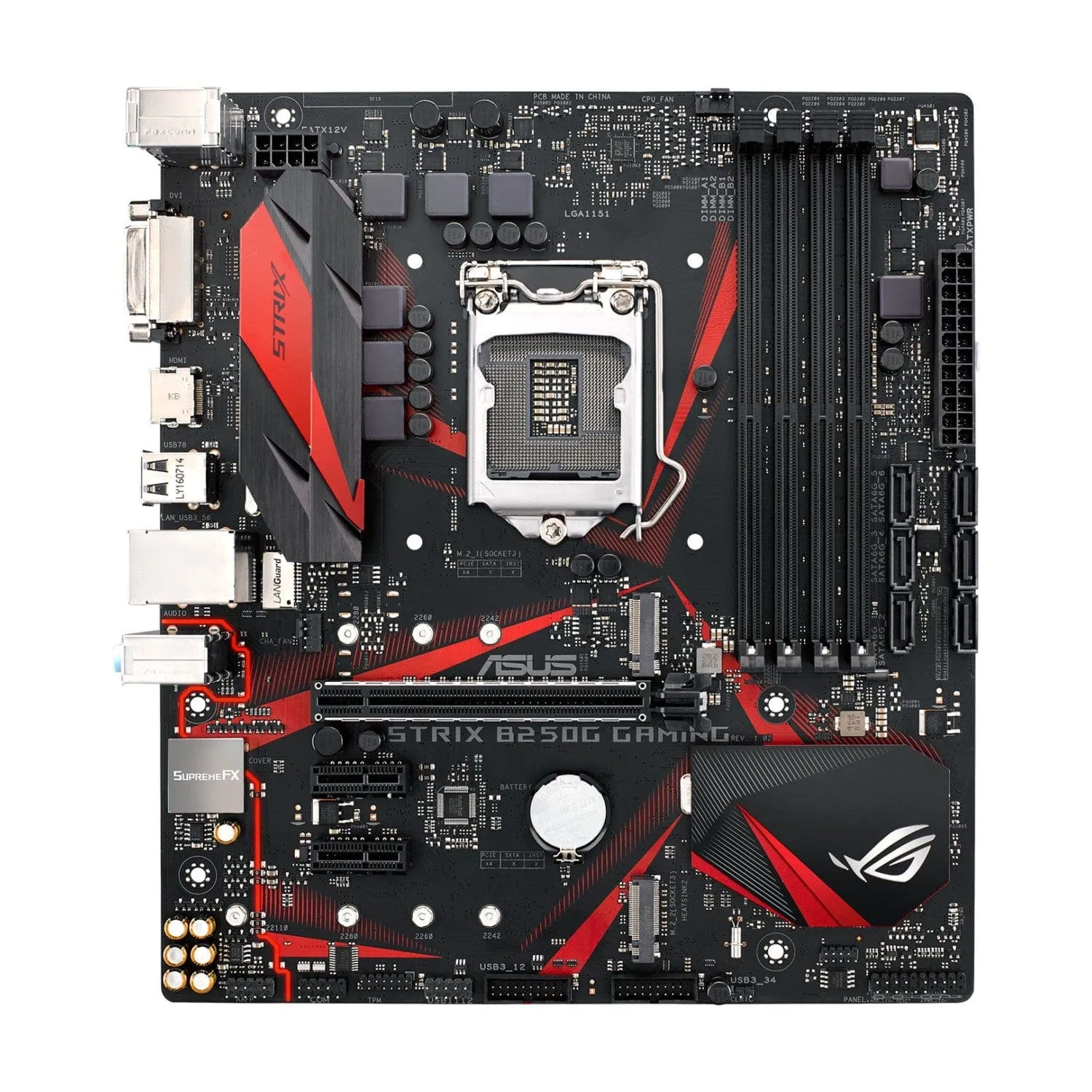

Intel LGA-1151 mATX B250G Gaming motherboard with SupremeFX S1220A audio codec, Intel Gigabit LAN, DDR4 2400MHz, dual M.2, HDMI, DVI and SATA 6 Gbps

The successor to Pro Gaming motherboards
ROG SupremeFX S1220A audio — Renowned audio technology with dual headphone amplifiers for crystal-clear sound
Gaming networking — Best-in-class Intel® Gigabit Ethernet for optimized LAN and online gaming experiences, plus surge-protecting LANGuard
Next-gen connectivity — Dual onboard M.2 slots for up to 32Gbps of PCIe bandwidth and Intel® Optane™ memory ready
Patent-pending ASUS SafeSlot for enhanced PCIe retention and shearing resistance

ROG STRIX B250G GAMING

CPU

Build in Intel^® Socket 1151for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium^®/Celeron^® Processors *

Supports Intel^® 14nm CPU

Supports Intel^® Turbo Boost Technology 2.0

* The Intel^® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset

Build in Intel^® B250

Memory

4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *

* Due to Intel^® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel^® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.

** Due to Intel^® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel^® processors will run at the maximum transfer rate of DDR4 2133MHz.

Supports Intel^® Extreme Memory Profile (XMP)

Graphic

Multi-VGA output support : HDMI/DVI ports

Integrated Graphics Processor- Intel^® HD Graphics support

- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz

- Supports DVI with max. resolution 1920 x 1200 @ 60Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports Intel^® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 3.0/2.0 x1 (x16 mode)

2 x PCIe 3.0/2.0 x1

Storage

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*

Intel^® B250 Chipset :

6 x SATA 6Gb/s port(s),

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

Intel^® Optane™ Memory Ready *

LAN

Intel^® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)

Anti-surge LANGuard

Audio

- Supports up to 32-Bit/192kHz playback *¹

- Sonic Studio III

Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity

SupremeFX8-Channel High Definition Audio CODEC S1220A

- Dual Headphone Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- SupremeFX Shielding Technology

Audio Feature :

- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path

- Sonic Radar III

USB Ports

6 x USB 3.0 port(s) (2 at back panel, , 4 at mid-board)

Intel^® B250 Chipset :

6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

ROG Exclusive Features

ROG CPU-Z

Overwolf

Special Features

GPU Boost

Fan Xpert 3

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports

Gamer´s Guardian:

- DRAM Overcurrent Protection

- Stainless Steel Back I/O

- Highly Durable components

- Digi VRM

- SafeSlot

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS MyLogo

ASUS Q-Design :

- ASUS Q-Shield

- ASUS Q-Slot

- ASUS Q-DIMM

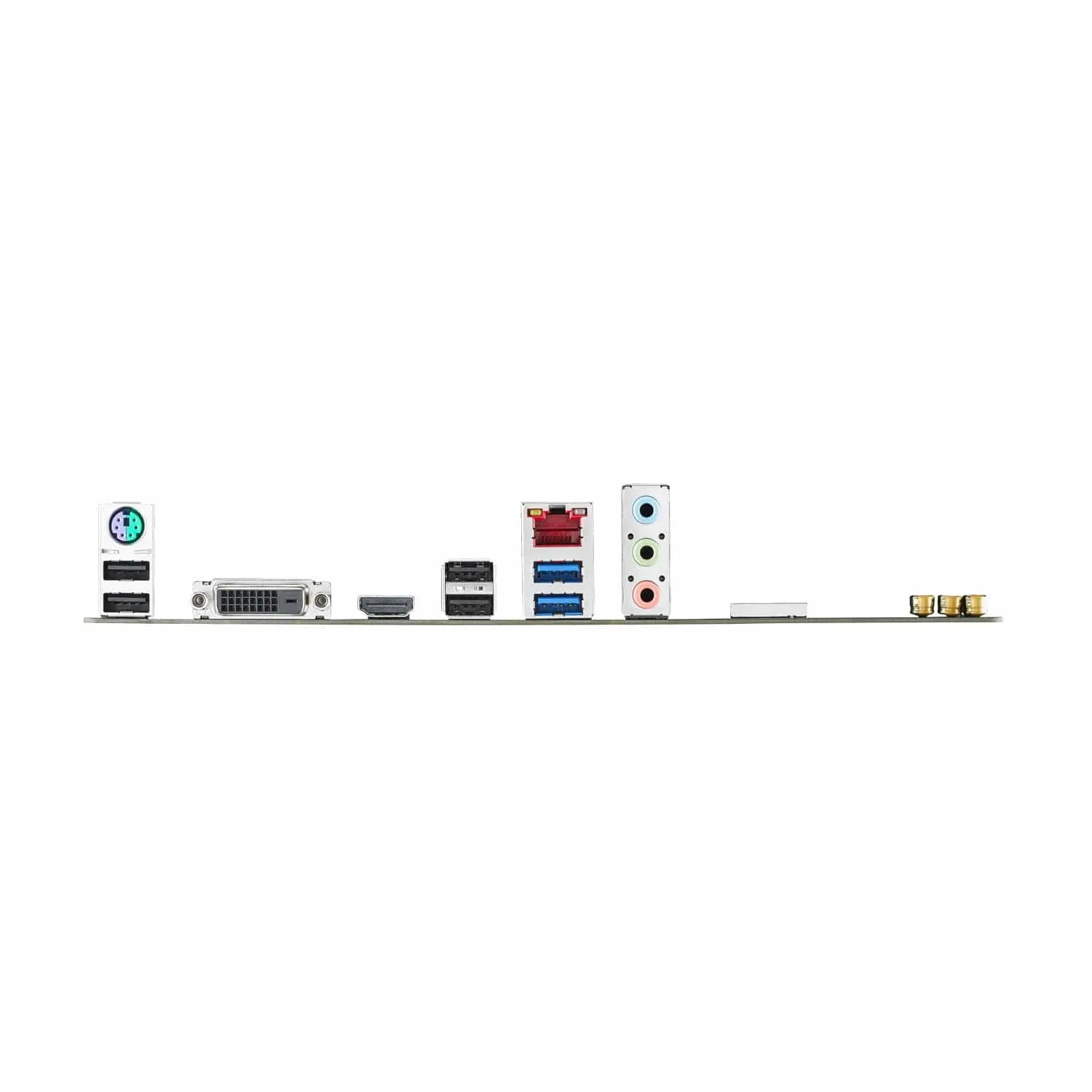

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 2.0

2 x USB 3.1 Gen 1

3 x Audio jack(s)

Internal I/O Ports

1 x AAFP connector

1 x CPU Fan connector(s) ( x 4-pin)

1 x Chassis Fan connector(s) ( x 4-pin)

1 x 8-pin EATX 12V Power connector

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x TPM connector(s)

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x Clear CMOS jumper(s)

1 x System panel connector

Accessories

2 x SATA 6Gb/s cable(s)

1 x 10-in-1 ROG cable label

User´s manual

I/O Shield

1 x M.2 Screw Package

1 x Supporting DVD

1 x ROG Strix stickers

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM2.0, DMI3.0, WOL by PME, PXE

Support Disc

Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System

*²

Windows^® 8.1 64-bit *¹

Windows^® 7 32-bit *¹

Windows^® 10 64-bit

Windows^® 7 64-bit *¹

Form Factor

9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )

mATX Form Factor

Note

*1 *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7.

*2 Windows^® 8.1 64-bit and Windows^® 7 32/64-bit are only supported when using 6th Generation Intel^® Processors.
