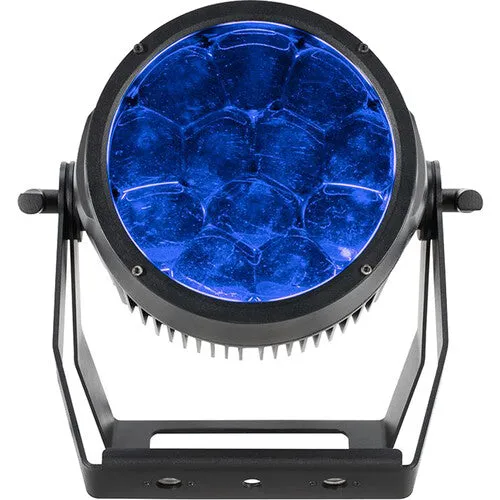

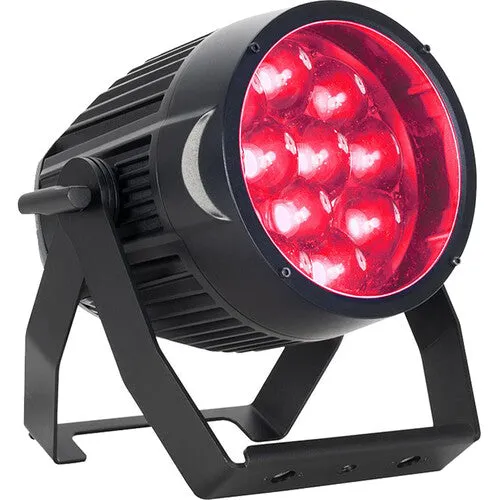

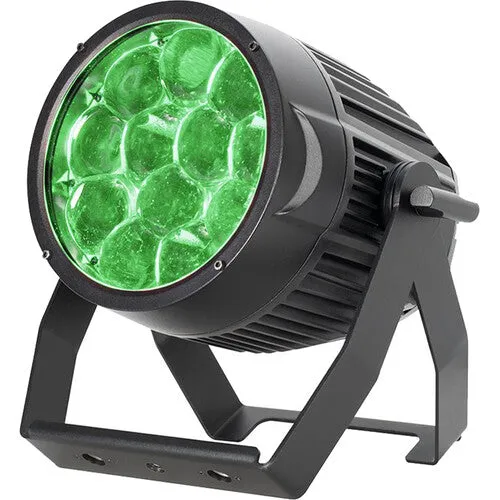

Withstand the elements with the American DJ Encore LP12Z IP, a heavy-duty IP65 outdoor-rated LED PAR with a 5 to 30° beam angle well suited for professional indoor and outdoor events. It features twelve 20W quad (4-in-1 RGBL) LEDs with 64 built-in color macros and includes five dimming curves plus smooth 0 to 100% electronic dimming.

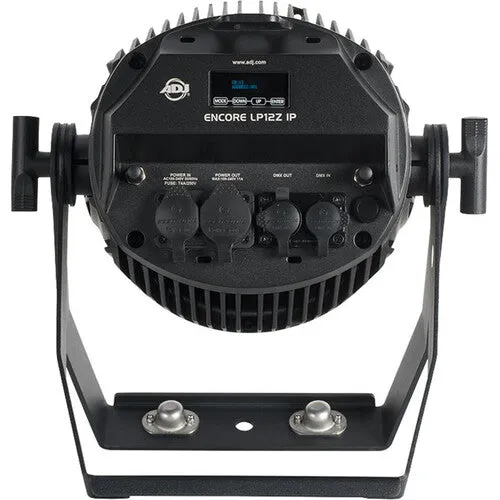

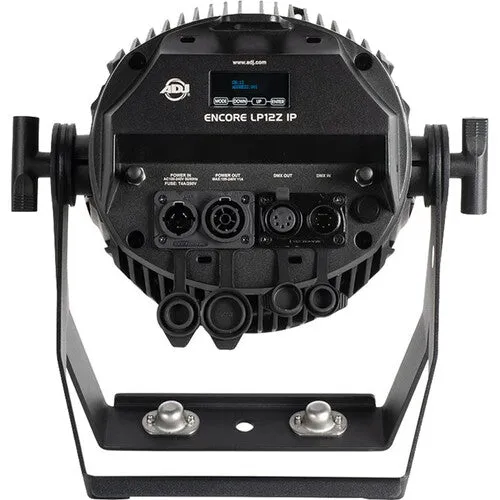

There are four operational modes, including Static Color, RGBL Dimmer, Program, and DMX Controlled, which offers six DMX channel modes. The 4-button LED display menu allows for easy navigation and programming. The fixture includes 5-pin DMX inputs and outputs as well as a powerCON input and pass-through. The dual-scissor yoke bracket allows it to be hung or set on the ground. The Encore LP12Z IP ships with a powerCON power cable.
Features
- Twelve 20W Quad RGBL LEDs
- Motorized Zoom: 5 to 30°
- Electronic Dimming: 0 to 100%
- 4 Operational Modes
- 6 DMX Channel Modes
- WiFLY Wireless DMX RDM
- 64 Built-In Color Macros
- Color Temperature Control with Presets
- Scissor Yoke
- Includes Power Cord
Specifications
| Fixture Type |
PAR
|
| Light Source |
12x Color LED - 20 W
|
| Colors |
Blue, Green, Lime, Red
|
| Beam Angle |
5 to 30°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
227 W
|
| Mounting |
Dual/Scissor Yoke
|
Light
| Fixture Type |
PAR
|
| Light Source |
12x Color LED - 20 W
|
| Colors |
Blue, Green, Lime, Red
|
| Color Temperature |
2700 to 6500K
|
| Lumen Output |
4400 Lumens
|
| Beam Angle |
5 to 30°
|
| Field Angle |
9 to 50°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
Motorized, 5 to 30°
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
Performance
| Operating Modes |
Color Dimmer, DMX, Program, Static Color
|
| Macros / Programs |
64x Color Macro
|
| Effects |
Strobe
Pulse
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: 77 to 84.4
|
| Refresh Rate |
900 Hz to 25,000 Hz
|
Control
| Control Protocols |
DMX512
|
| DMX Channel Modes |
6 Mode(s):
6 / 9 / 10 / 12 / 15 / 18-Channel
|
| Display / Controls |
LCD / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
|
| Wireless |
Wi-Fi
*Built-In
|
| Wireless Range |
2500' / 762 m
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1
|
| Power / Current Consumption |
227 W
|
| Power Linking |
6 Units at 120 VAC
12 Units at 220 VAC
|
Physical
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Mounting |
Dual/Scissor Yoke
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
cETLus
|
| Dimensions |
13.7 x 12.4 x 8.7" / 34.8 x 31.5 x 22.1 cm
|
| Weight |
16.6 lb / 7.5 kg
|
