Exhaust Gas Temperature (EGT) Sensor Kit

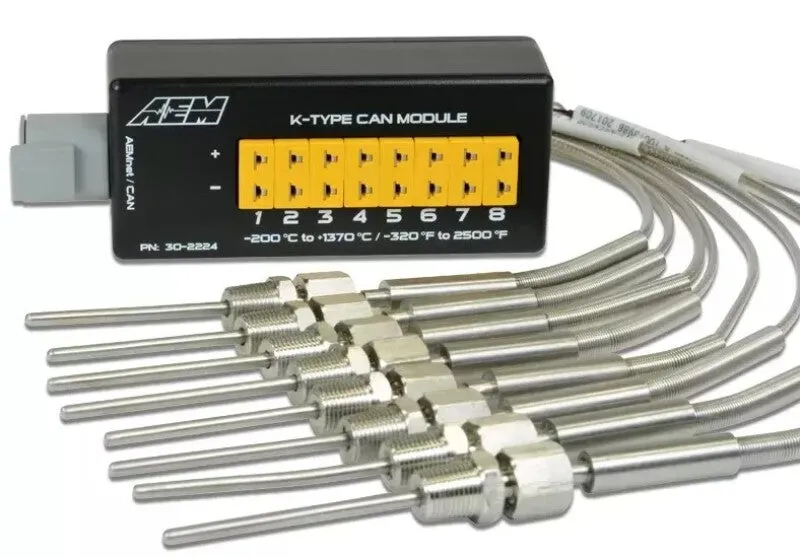

8-Channel K-Type Thermocouple EGT/Temperature Sensor Module with CANbusconnectivity, includes CAN Module, DTM connector plug, Velcro tab for mounting and instructions.

Daisy-chain two modules together for up to 16 temp inputs through a single plug!

Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)

Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time)

Cold junction compensated for lab-grade accuracy ( /- 0.15% full scale)

Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)

Temperature resolution 0.1 degC (0.18 degF)

Integrated open circuit/fault detection

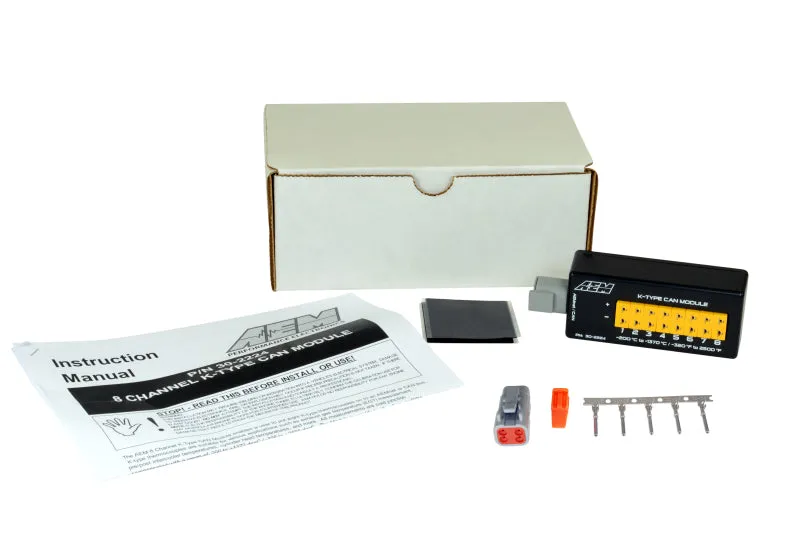

Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting

Product Description:

EGT Monitor

K-Type

8-Channel

AEM Digital Dash

Sold Individually
